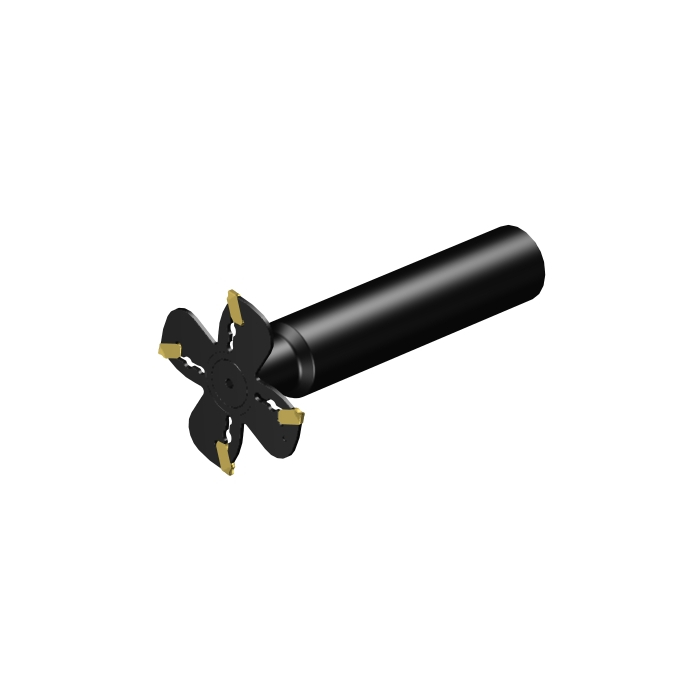

Sandvik Coromant AQD-EC063O25-M CoroMill™ QD indexable grooving & parting off cutter

Name: Sandvik Coromant AQD-EC063O25-M CoroMill™ QD indexable grooving & parting off cutter
SKU: 6657593
Price: 10703.05 ZAR
Availability: InStock

Be the first to review this product

R 10 703,05 inc. vat

In stock

SKU

6657593

CoroMill® QD indexable grooving and parting off cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® QD indexable grooving and parting off cutter

More Information

More Information
CP - Coolant Pressure	7000000Pa
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	130mm
BD - Body Diameter	19mm
LB - Body Length	21.8mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	49001/min
WT - Weight Of Item	0.473kg
OAL - Overall Length	130mm
OHX - Maximum Overhang	72.06mm
LSC - Clamping Length	105.1mm
KAPR - Tool Cutting Edge Angle	90deg
OHN - Minimum Overhang	24.9mm
Insert Thickness	3.1mm
LU - Usable Length	23.4mm
CW - Cutting Width	2mm
CDX - Cutting Depth Maximum	21mm
DC - Cutting Diameter	63mm
DN - Neck Diameter	19mm
ORDCODE	AQD-EC063O25-M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-01-17 11:03:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NOE_1
Hand	R
MIID - Master Insert Identification	QD-NE-0200-020E-PM
SSC - Insert Seat Size Code	E
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
