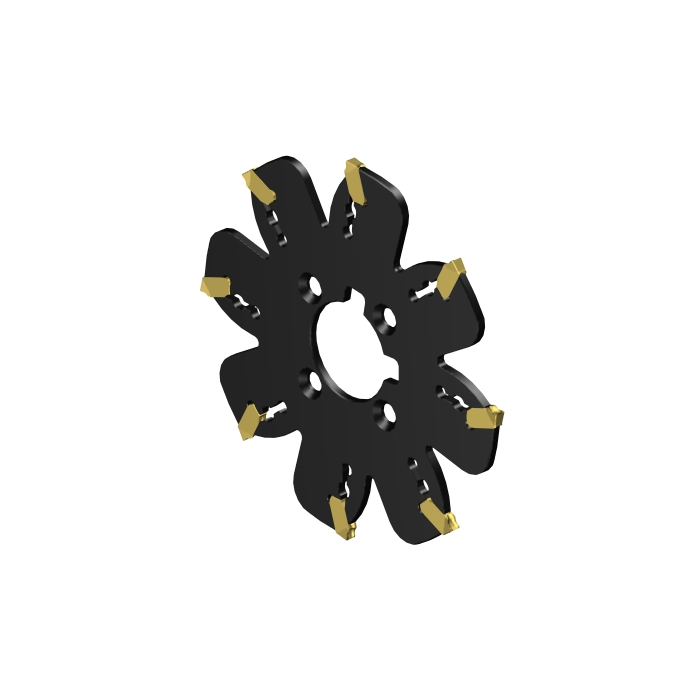

Sandvik Coromant AQD-GC102Y25-M CoroMill™ QD indexable grooving & parting off cutter

Name: Sandvik Coromant AQD-GC102Y25-M CoroMill™ QD indexable grooving & parting off cutter
SKU: 6657482
Price: 16988.95 ZAR
Availability: InStock

Be the first to review this product

R 16 988,95 inc. vat

In stock

SKU

6657482

CoroMill® QD indexable grooving and parting off cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® QD indexable grooving and parting off cutter

More Information

More Information
CP - Coolant Pressure	7000000Pa
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	2.79mm
RPMX - Rotational Speed Maximum	54001/min
WT - Weight Of Item	0.093kg
OAL - Overall Length	3.18mm
OHX - Maximum Overhang	2.79mm
DBC - Diameter Bolt Circle	36mm
KAPR - Tool Cutting Edge Angle	90deg
Insert Thickness	3.1mm
CW - Cutting Width	3.18mm
CDX - Cutting Depth Maximum	25.8mm
DC - Cutting Diameter	101.6mm
ORDCODE	AQD-GC102Y25-M
ADINTMS - Adaptive Interface Machine Direction	M_FDAC24_C0Y25_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-01-17 12:03:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NOG_2
Hand	R
MIID - Master Insert Identification	QD-NG-0318-020E-PM
SSC - Insert Seat Size Code	G
CICT - Cutting Item Count	8
ZEFP - Peripheral Effective Cutting Edge Count	8
DRVCT - Drive Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
