Sandvik Coromant AQD-GC127Y31-M CoroMill™ QD indexable grooving & parting off cutter
R 20 045,65
inc. vat
In stock
SKU
6657483
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

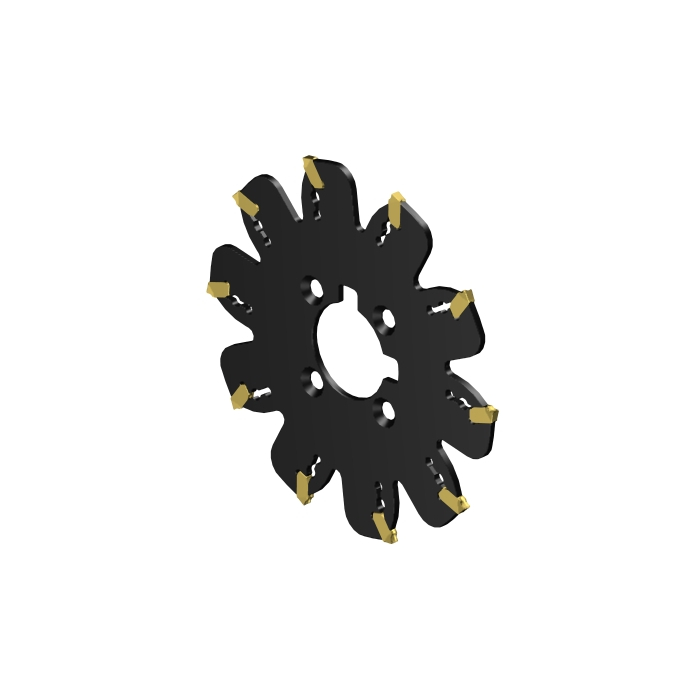

CoroMill® QD indexable grooving and parting off cutter
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 31.75mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 2.79mm |
| RPMX - Rotational Speed Maximum | 48001/min |
| WT - Weight Of Item | 0.154kg |
| OAL - Overall Length | 3.18mm |
| OHX - Maximum Overhang | 2.79mm |
| DBC - Diameter Bolt Circle | 45mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| Insert Thickness | 3.1mm |
| CW - Cutting Width | 3.18mm |
| CDX - Cutting Depth Maximum | 32mm |
| DC - Cutting Diameter | 127mm |
| ORDCODE | AQD-GC127Y31-M |
| ADINTMS - Adaptive Interface Machine Direction | M_FDAC24_C0Y31_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-17 12:06:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NOG_2 |
| Hand | R |
| MIID - Master Insert Identification | QD-NG-0318-020E-PM |
| SSC - Insert Seat Size Code | G |
| CICT - Cutting Item Count | 10 |
| ZEFP - Peripheral Effective Cutting Edge Count | 10 |
| DRVCT - Drive Count | 2 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
