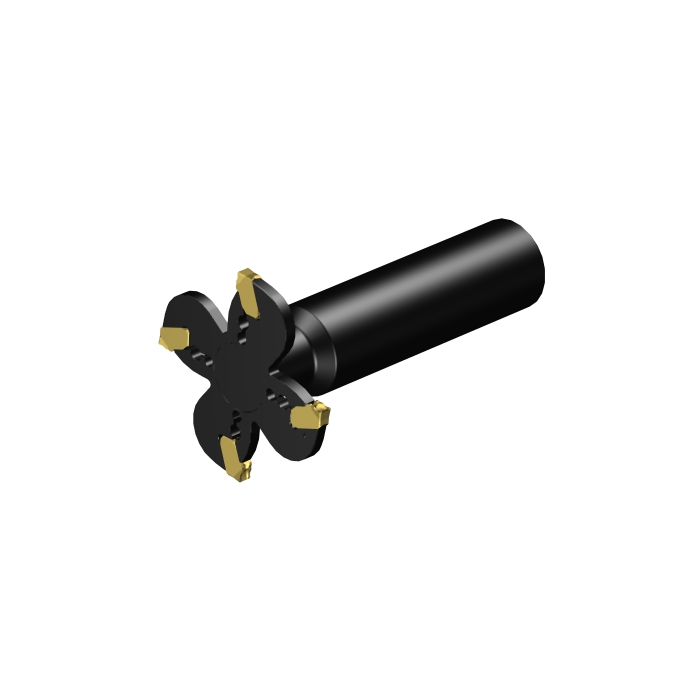

Sandvik Coromant AQD-J-076O31-M CoroMill™ QD indexable grooving & parting off cutter

Name: Sandvik Coromant AQD-J-076O31-M CoroMill™ QD indexable grooving & parting off cutter
SKU: 6657496
Price: 10489.15 ZAR
Availability: InStock

Be the first to review this product

R 10 489,15 inc. vat

In stock

SKU

6657496

CoroMill® QD indexable grooving and parting off cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® QD indexable grooving and parting off cutter

More Information

More Information
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	130mm
BD - Body Diameter	22mm
LB - Body Length	24.7mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	43001/min
WT - Weight Of Item	0.785kg
OAL - Overall Length	130mm
OHX - Maximum Overhang	72.06mm
LSC - Clamping Length	101.4mm
KAPR - Tool Cutting Edge Angle	90deg
OHN - Minimum Overhang	28.6mm
Insert Thickness	5mm
LU - Usable Length	26.7mm
CW - Cutting Width	4.76mm
CDX - Cutting Depth Maximum	26mm
DC - Cutting Diameter	76mm
DN - Neck Diameter	22mm
ORDCODE	AQD-J-076O31-M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-01-17 12:03:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NOJ_1
Hand	R
MIID - Master Insert Identification	QD-NJ-0476-030E-PM
SSC - Insert Seat Size Code	J
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
