Sandvik Coromant RCMT 08 03 MP-L3 1105 CoroTurn™ 107 insert with rail for turning
Next
Sandvik Coromant CNGX1204L025-18AXA 7014 T-Max™ P insert for turning
Previous
![Sandvik Coromant RCMT 08 03 MP-L3 1105 CoroTurn™ 107 insert with rail for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/712943743/sandvik-coromant-rcmt-08-03-mp-l3-1105-coroturntm-107-insert-with-rail-for-turning.jpg)
![Sandvik Coromant CNGX1204L025-18AXA 7014 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7129293f1/sandvik-coromant-cngx1204l025-18axa-7014-t-maxtm-p-insert-for-turning.jpg)
R 1 478,90
inc. vat
In stock
SKU
7941844

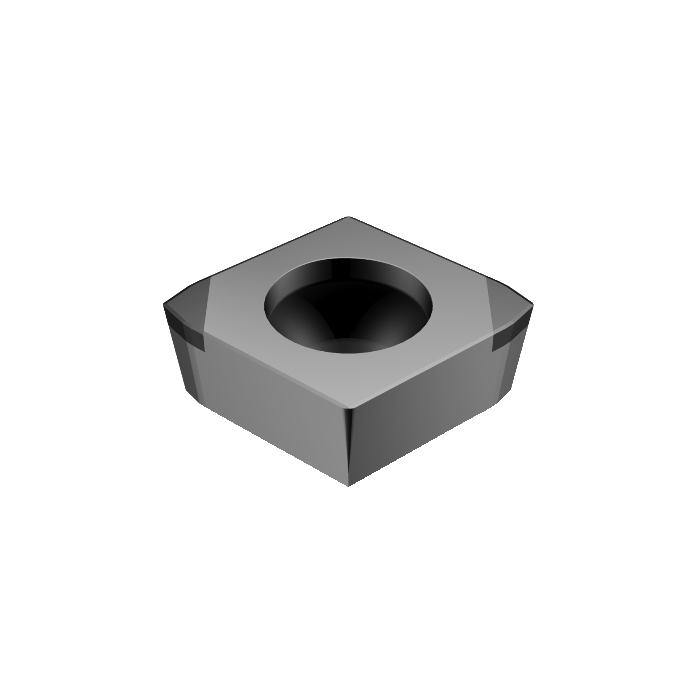

CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 3.5g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 2.3mm |
L - Cutting Edge Length | 9.6719mm |
KRINS - Major Cutting Edge Angle | 95deg |
BN - Face Land Width | 0.15mm |
GB - Face Land Angle | 15deg |
GAN - Insert Rake Angle | 0deg |
APMX - Depth Of Cut Maximum | 0.2mm |
KCH - Corner Chamfer | 14deg |
ORDCODE | CCGX09T3L020-15FXA 7014 |
CHANGEDATE | 2022-09-23 22:08:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 09 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC09T3_1 |
Grade | 7014 |
SUBSTRATE | BL |
CBMD - Chip Breaker Manufacturer's Designation | XA |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
