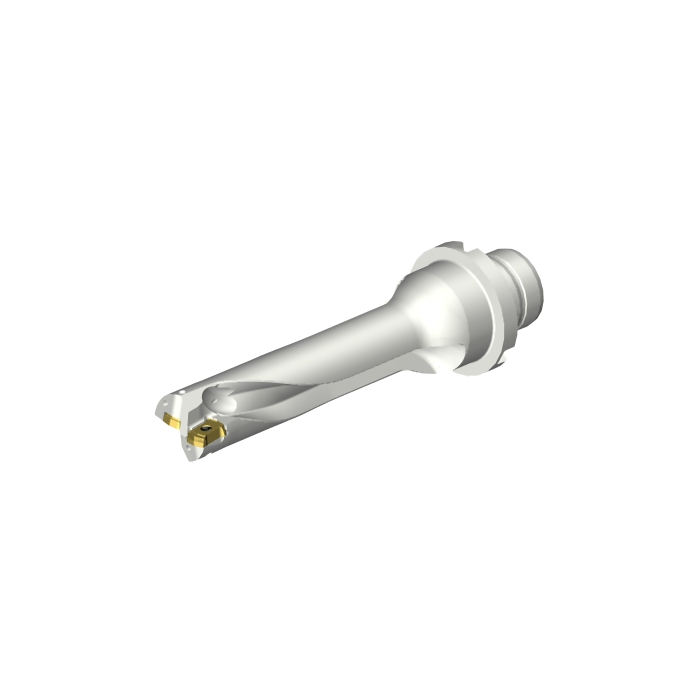

Sandvik Coromant DS20-D1700DM20-04 CoroDrill® DS20 indexable insert drill

Name: Sandvik Coromant DS20-D1700DM20-04 CoroDrill® DS20 indexable insert drill
SKU: 7755862
Price: 8699.75 ZAR
Availability: InStock

R 8 699,75 inc. vat

In stock

SKU

7755862

CoroDrill® DS20 indexable insert drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® DS20 indexable insert drill

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	96.5369mm
BD - Body Diameter	16.575mm
LB - Body Length	71mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	210001/min
WT - Weight Of Item	0.2kg
OAL - Overall Length	112mm
OHX - Maximum Overhang	96.5369mm
KAPR - Tool Cutting Edge Angle	81deg
GAMO - Orthogonal Rake Angle	5.3deg
LAMS - Inclination Angle	0deg
IC - Inscribed Circle Diameter	6.02mm
Insert Thickness	2.725mm
LU - Usable Length	68.4631mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	0.5mm
W1 - Insert Width	5mm
INSL - Insert Length	8.5mm
DC - Cutting Diameter	17mm
FHA - Flute Helix Angle	25deg
ULDR - Usable Length Diameter Ratio	4.027241176471
TCHAL - Achievable Hole Tolerance Lower	0mm
TCHAU - Achievable Hole Tolerance Upper	0.27mm
PL - Point Length	0.4631mm
LCF - Chip Flute Length	83.3149mm
SIG - Point Angle	162deg
ORDCODE	DS20-D1700DM20-04
ADINTMS - Adaptive Interface Machine Direction	M_FLC11_A0200_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-10-13 10:36:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DQ0104P_1
Hand	R
MIID - Master Insert Identification	DS20-0104-P
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	01C
CICT - Cutting Item Count	1
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
