R 11 628,80
inc. vat
Out of stock
SKU
7755877
corodrill® ds20 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days

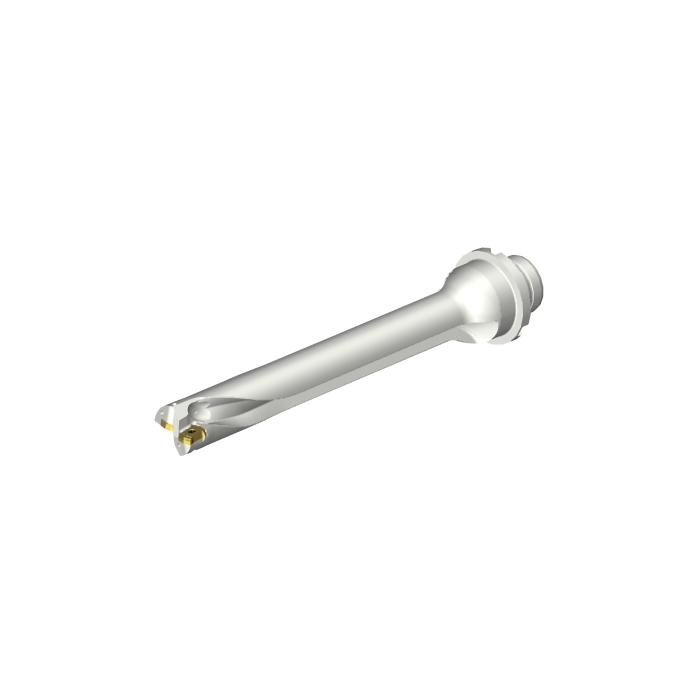

corodrill® ds20 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 179.4423mm |
BD - Body Diameter | 20.475mm |
LB - Body Length | 150mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.9Nm |
RPMX - Rotational Speed Maximum | 50001/min |
WT - Weight Of Item | 0.476kg |
OAL - Overall Length | 195mm |
OHX - Maximum Overhang | 179.4423mm |
KAPR - Tool Cutting Edge Angle | 81deg |
GAMO - Orthogonal Rake Angle | 5.3deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 7.34mm |
Insert Thickness | 3.1mm |
LU - Usable Length | 147.5577mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0.58mm |
W1 - Insert Width | 6.1mm |
INSL - Insert Length | 9.8mm |
DC - Cutting Diameter | 21mm |
FHA - Flute Helix Angle | 25deg |
ULDR - Usable Length Diameter Ratio | 7.026557142857 |
TCHAL - Achievable Hole Tolerance Lower | -0.1mm |
TCHAU - Achievable Hole Tolerance Upper | 0.5mm |
PL - Point Length | 0.5577mm |
LCF - Chip Flute Length | 165.8223mm |
SIG - Point Angle | 162deg |
ORDCODE | DS20-D2100DM25-07 |
ADINTMS - Adaptive Interface Machine Direction | M_FLC11_A0250_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-30 15:03:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DQ0205P_1 |
Hand | R |
MIID - Master Insert Identification | DS20-0205-C |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 02C |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
