R 556,60
inc. vat
In stock
SKU
6924057

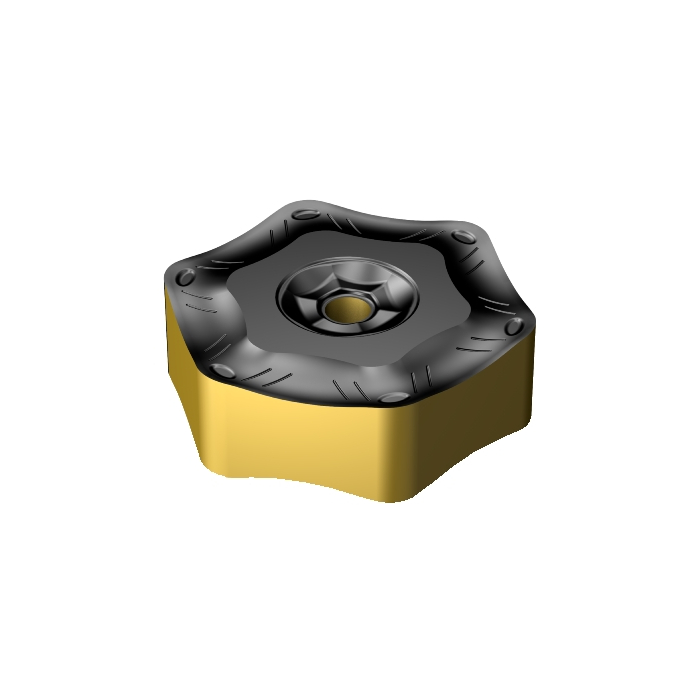

CoroMill® S-60 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® S-60 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.018kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 16.2mm |
RE - Corner Radius | 2mm |
Insert Thickness | 5.56mm |
D1 - Fixing Hole Diameter | 2.2mm |
LE - Cutting Edge Effective Length | 8.9mm |
L - Cutting Edge Length | 9.353074mm |
KRINS - Major Cutting Edge Angle | 60deg |
GAN - Insert Rake Angle | 15deg |
ORDCODE | HNGF 09 05 20-KM 3220 |
CHANGEDATE | 2022-09-23 19:32:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | H |
SSC - Insert Seat Size Code | 09 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NI0905N_1 |
Grade | 3220 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KM |
CEDC - Cutting Edge Count | 12 |
WEP - Wiper Edge Property | False |
