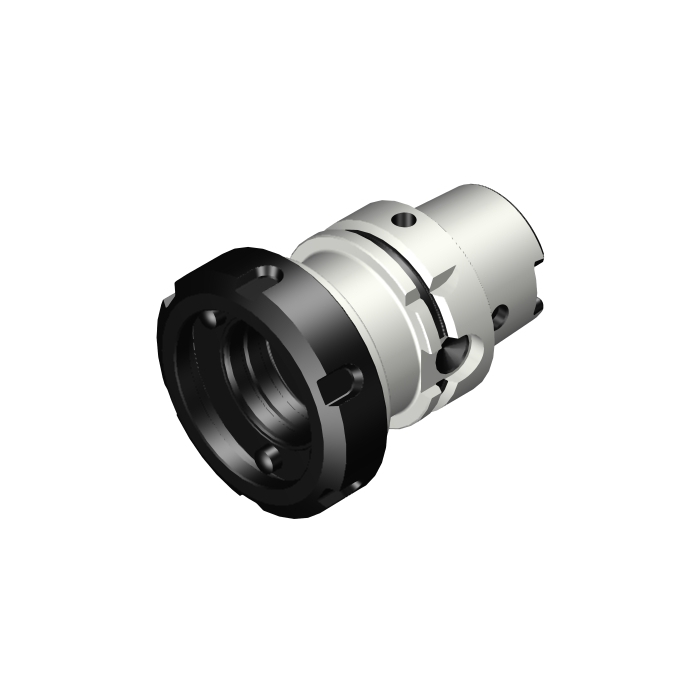

Sandvik Coromant HT06-DM40-N-061 HSK to MDI adaptor
R 7 676,25
inc. vat
Out of stock
SKU
7962800
HSK to MDI adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to MDI adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 48.01mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 61mm |
| BD - Body Diameter | 79.7mm |
| LB - Body Length | 73mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 230Nm |
| RPMX - Rotational Speed Maximum | 205001/min |
| WT - Weight Of Item | 1.501kg |
| OAL - Overall Length | 104.9mm |
| OHX - Maximum Overhang | 61mm |
| ORDCODE | HT06-DM40-N-061 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FLC11_A0400_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-20 10:51:00.000 |
| STDLET - Standard Letter | T |
| STDNO - Standard Number | DIN69893-7 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
