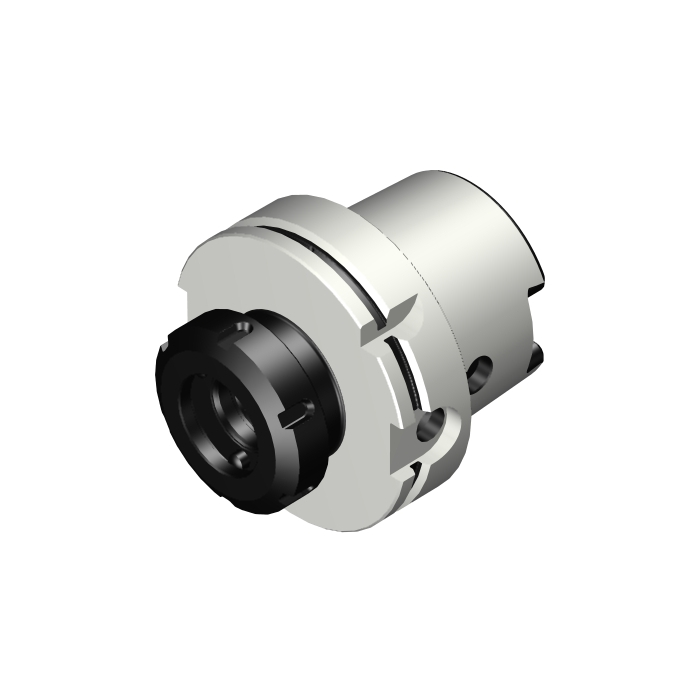

Sandvik Coromant HT10-DM25-N-048 HSK to MDI adaptor
R 10 179,80
inc. vat
In stock
SKU
7962801
HSK to MDI adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to MDI adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 75.013mm |
| DCON - Connection Diameter | 25mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 48mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 58mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 170Nm |
| RPMX - Rotational Speed Maximum | 125001/min |
| WT - Weight Of Item | 2.373kg |
| OAL - Overall Length | 107.9mm |
| OHX - Maximum Overhang | 48mm |
| ORDCODE | HT10-DM25-N-048 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FLC11_A0250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-20 10:51:00.000 |
| STDLET - Standard Letter | T |
| STDNO - Standard Number | DIN69893-7 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
