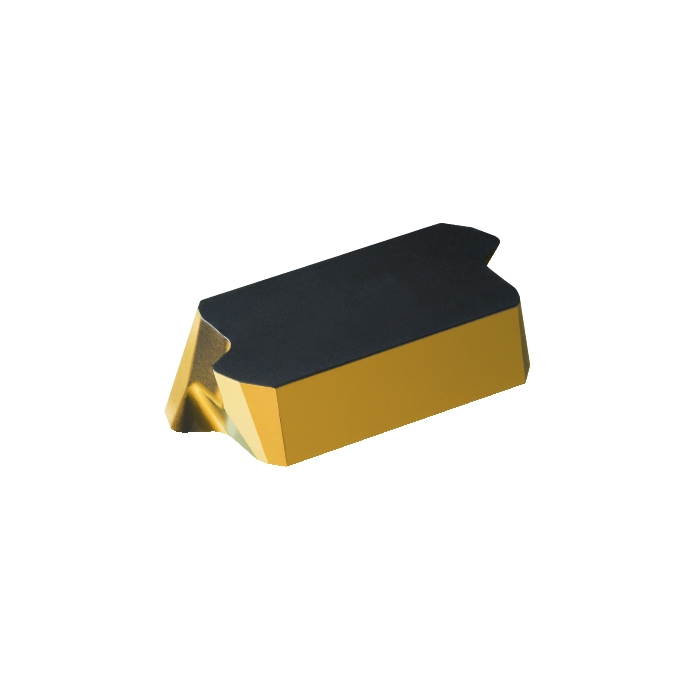

Sandvik Coromant LNCX 18 06 AZ R-11 3330 T-Max™ 45 insert for milling

R 534,75 inc. vat
In stock
SKU
6428173
T-Max® 45 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® 45 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 21g
AN - Clearance Angle Major 0deg
RE - Corner Radius 0mm
Insert Thickness 6.4mm
LE - Cutting Edge Effective Length 18.77mm
KRINS - Major Cutting Edge Angle 44deg
BS - Wiper Edge Length 2mm
GAN - Insert Rake Angle 0deg
APMX - Depth Of Cut Maximum 12mm
W1 - Insert Width 10mm
BSR - Wiper Edge Radius 125mm
ORDCODE LNCX 18 06 AZ R-11 3330
CHANGEDATE 2022-09-23 19:09:00.000
Hand R
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code L
SSC - Insert Seat Size Code 18
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_NB1806AZ_1
Grade 3330
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property True
