Sandvik Coromant LNCX 18 06 AZ R-11 SM30 T-Max™ 45 insert for milling
R 385,25
inc. vat
In stock
SKU
5735051

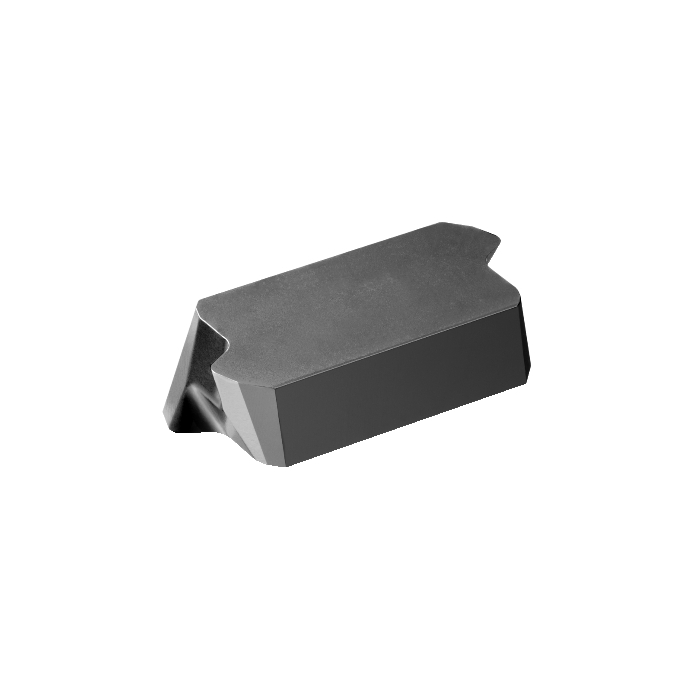

T-Max® 45 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® 45 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 17.5g |
| AN - Clearance Angle Major | 0deg |
| RE - Corner Radius | 0mm |
| Insert Thickness | 6.4mm |
| LE - Cutting Edge Effective Length | 18.77mm |
| KRINS - Major Cutting Edge Angle | 44deg |
| BS - Wiper Edge Length | 2mm |
| GAN - Insert Rake Angle | 0deg |
| APMX - Depth Of Cut Maximum | 12mm |
| W1 - Insert Width | 10mm |
| BSR - Wiper Edge Radius | 125mm |
| ORDCODE | LNCX 18 06 AZ R-11 SM30 |
| CHANGEDATE | 2022-09-23 17:30:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 18 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NB1806AZ_1 |
| Grade | SM30 |
| SUBSTRATE | HW |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
