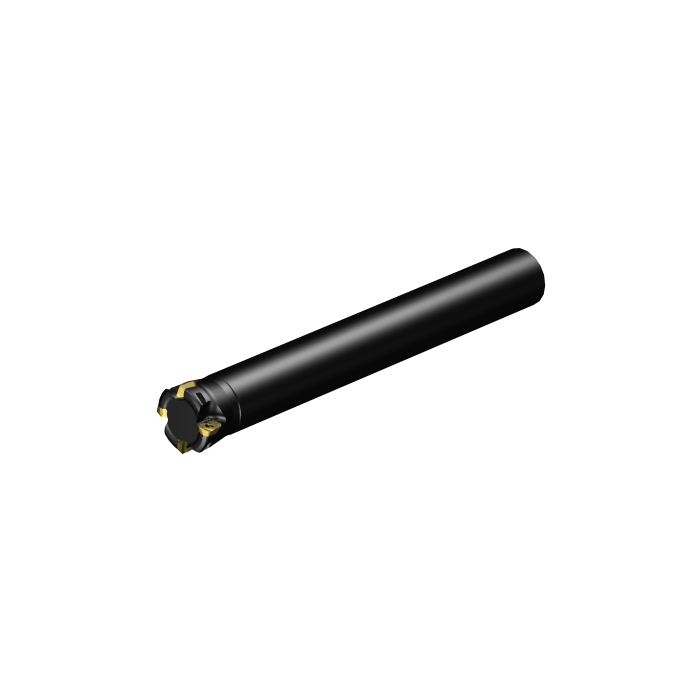

Sandvik Coromant MH20-AR038O32-08M CoroMill™ MH20 face milling cutter

Name: Sandvik Coromant MH20-AR038O32-08M CoroMill™ MH20 face milling cutter
SKU: 8097013
Price: 7293.30 ZAR
Availability: OutOfStock

R 7 293,30 inc. vat

Out of stock

SKU

8097013

CoroMill® MH20 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® MH20 face milling cutter

More Information
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	250mm
TQ - Torque	2Nm
RPMX - Rotational Speed Maximum	161001/min
WT - Weight Of Item	1.478kg
OAL - Overall Length	250mm
OHX - Maximum Overhang	154.75mm
KAPR - Tool Cutting Edge Angle	15deg
RMPX - Maximum Ramping Angle	2.7deg
AN - Clearance Angle Major	12.3deg
Insert Thickness	4.03mm
LU - Usable Length	120mm
L - Cutting Edge Length	6.6mm
APMX - Depth Of Cut Maximum	1.2mm
W1 - Insert Width	8.5mm
DC - Cutting Diameter	27.45mm
DCF - Cutting Diameter Face Contact	27.45mm
DCX - Maximum Cutting Diameter	38.1mm
AZ - Maximum Plunge Depth	0.9mm
ORDCODE	MH20-AR038O32-08M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1250_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 17:26:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NW0804_1
Hand	R
MIID - Master Insert Identification	MH20-080425..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	True
