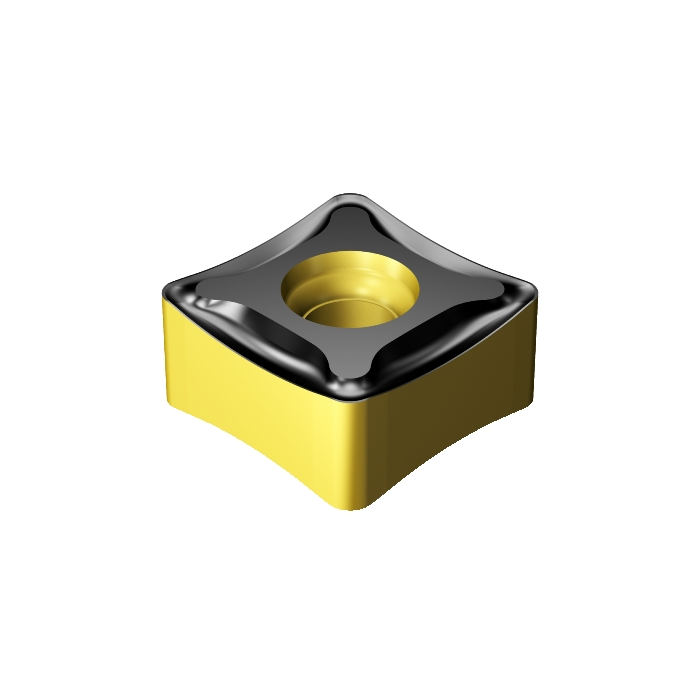

Sandvik Coromant N331.1D-136520E-PM 4220 CoroMill™ 331 insert for side & facemilling

R 443,90 inc. vat
In stock
SKU
5782729
CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 12.9g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 13.4mm
RE - Corner Radius 2mm
Insert Thickness 6.55mm
D1 - Fixing Hole Diameter 4.35mm
LE - Cutting Edge Effective Length 10.2mm
L - Cutting Edge Length 13.4mm
KRINS - Major Cutting Edge Angle 88deg
BS - Wiper Edge Length 1.2mm
APMX - Depth Of Cut Maximum 10.1mm
ORDCODE N331.1D-136520E-PM 4220
CHANGEDATE 2022-09-23 17:46:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 13
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MW13_1
Grade 4220
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PM
CEDC - Cutting Edge Count 8
WEP - Wiper Edge Property True
