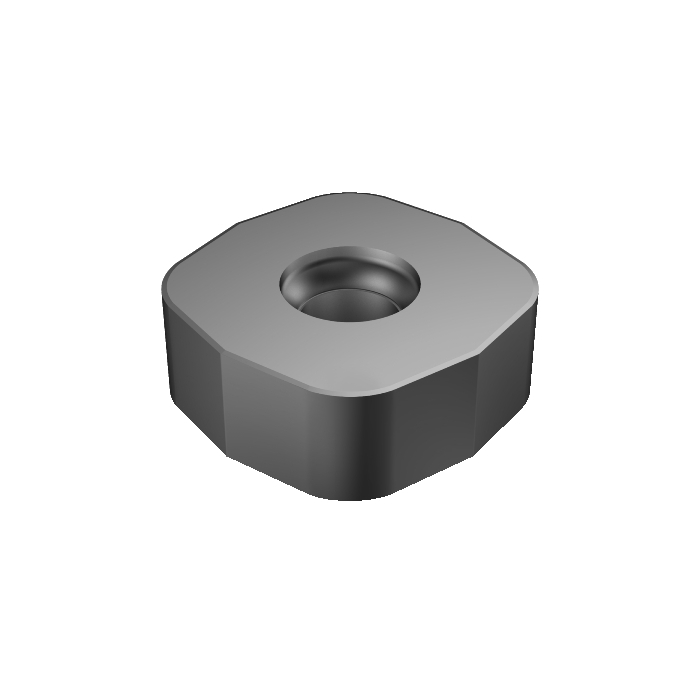

Sandvik Coromant N365-1505ZNE 6190 CoroMill™ 365 insert for milling
R 955,65
inc. vat
In stock
SKU
5782733
CoroMill® 365 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 365 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3.1g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 15mm |
| RE - Corner Radius | 3.6mm |
| Insert Thickness | 5.66mm |
| D1 - Fixing Hole Diameter | 4.6mm |
| LE - Cutting Edge Effective Length | 6.4mm |
| KRINS - Major Cutting Edge Angle | 65deg |
| BN - Face Land Width | 0.25mm |
| GB - Face Land Angle | 15deg |
| BS - Wiper Edge Length | 1.2mm |
| GAN - Insert Rake Angle | 0deg |
| APMX - Depth Of Cut Maximum | 6mm |
| BSR - Wiper Edge Radius | 150mm |
| ORDCODE | N365-1505ZNE 6190 |
| CHANGEDATE | 2022-09-23 17:50:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MG1505_1 |
| Grade | 6190 |
| SUBSTRATE | CN |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | True |
