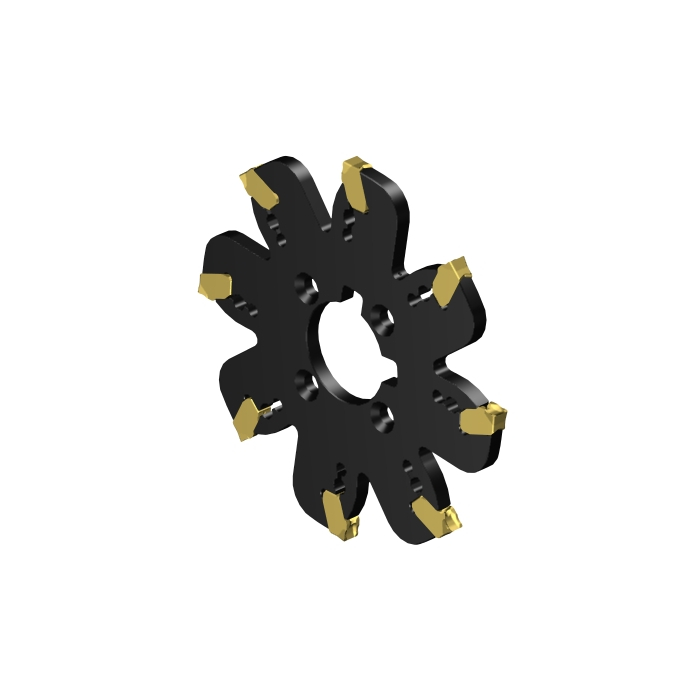

Sandvik Coromant QD-KC125X32-M CoroMill™ QD indexable grooving & parting off cutter

R 18 348,25 inc. vat
In stock
SKU
6657536
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD indexable grooving and parting off cutter
More Information
CP - Coolant Pressure 7000000Pa
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5.65mm
RPMX - Rotational Speed Maximum 35001/min
WT - Weight Of Item 0.29kg
OAL - Overall Length 6mm
OHX - Maximum Overhang 5.65mm
DBC - Diameter Bolt Circle 45mm
KAPR - Tool Cutting Edge Angle 90deg
Insert Thickness 5mm
CW - Cutting Width 6mm
CDX - Cutting Depth Maximum 31mm
DC - Cutting Diameter 125mm
ORDCODE QD-KC125X32-M
ADINTMS - Adaptive Interface Machine Direction M_FDAC24_C0X32_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-01-17 11:19:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NOK_1
Hand R
MIID - Master Insert Identification QD-NK-0600-035E-PM
SSC - Insert Seat Size Code K
CICT - Cutting Item Count 8
ZEFP - Peripheral Effective Cutting Edge Count 8
DRVCT - Drive Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
