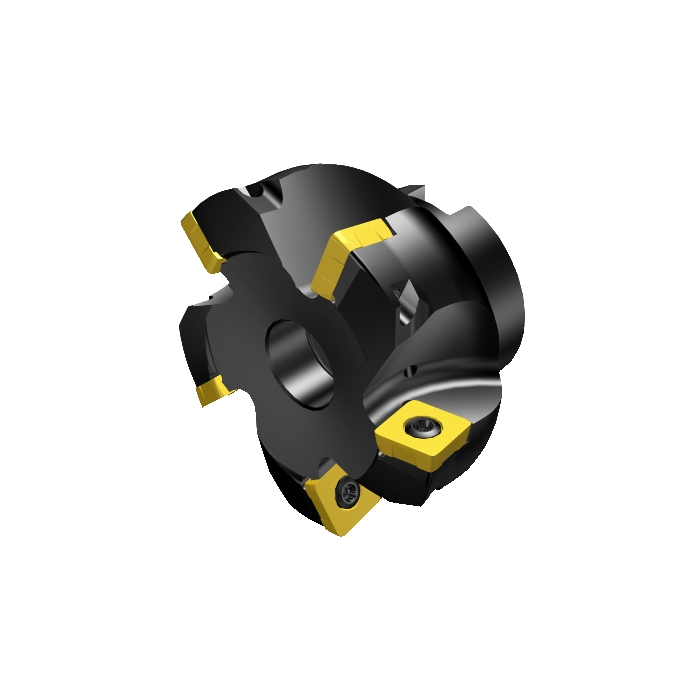

Sandvik Coromant R210-050Q22-09H CoroMill™ 210 face milling cutter

R 9 585,25 inc. vat
In stock
SKU
5742560
CoroMill® 210 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 210 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 22mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
BD - Body Diameter 46.96mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 245001/min
WT - Weight Of Item 0.225kg
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
KAPR - Tool Cutting Edge Angle 10deg
RMPX - Maximum Ramping Angle 3.5deg
GAMO - Orthogonal Rake Angle 2deg
LAMS - Inclination Angle 1deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.4mm
Insert Thickness 4mm
APMX - Depth Of Cut Maximum 1.2mm
DC - Cutting Diameter 35.9mm
DCF - Cutting Diameter Face Contact 35.9mm
GAMF - Radial Rake Angle -0.63744369deg
GAMP - Axial Rake Angle 2.14308167deg
DCX - Maximum Cutting Diameter 50mm
AZ - Maximum Plunge Depth 1.8mm
ORDCODE R210-050Q22-09H
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_G2200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:45:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MA0904_1
Hand R
MIID - Master Insert Identification R210-090412M-
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 09
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
