Sandvik Coromant R215.34C08040-DS09K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker

R 2 333,35 inc. vat
In stock
SKU
5742671

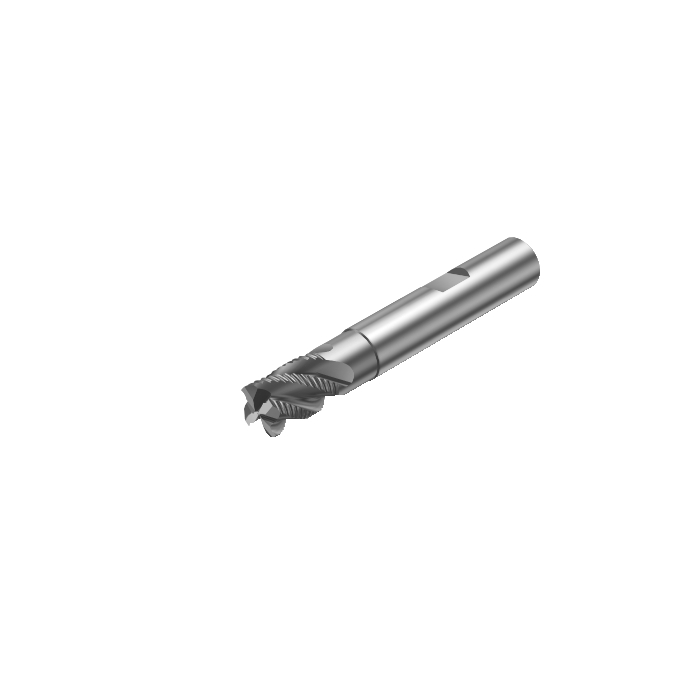

CoroMill® Plura solid carbide end mill for roughing with chip breaker
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for roughing with chip breaker
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 58mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 47g
OAL - Overall Length 58mm
OHX - Maximum Overhang 22mm
LSC - Clamping Length 36mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 0.4mm
H - Shank Height 6.6mm
LU - Usable Length 20mm
MHD - Mounting Hole Distance 18mm
APMX - Depth Of Cut Maximum 9mm
DC - Cutting Diameter 8mm
DCF - Cutting Diameter Face Contact 7.2mm
DN - Neck Diameter 7.5mm
FHA - Flute Helix Angle 40deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 2.5
ORDCODE R215.34C08040-DS09K 1640
ADINTMS - Adaptive Interface Machine Direction M_CYLW_F8000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 08:57:00.000
STDLET - Standard Letter WE
STDNO - Standard Number ISO3338-2
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1640
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6527 K
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
