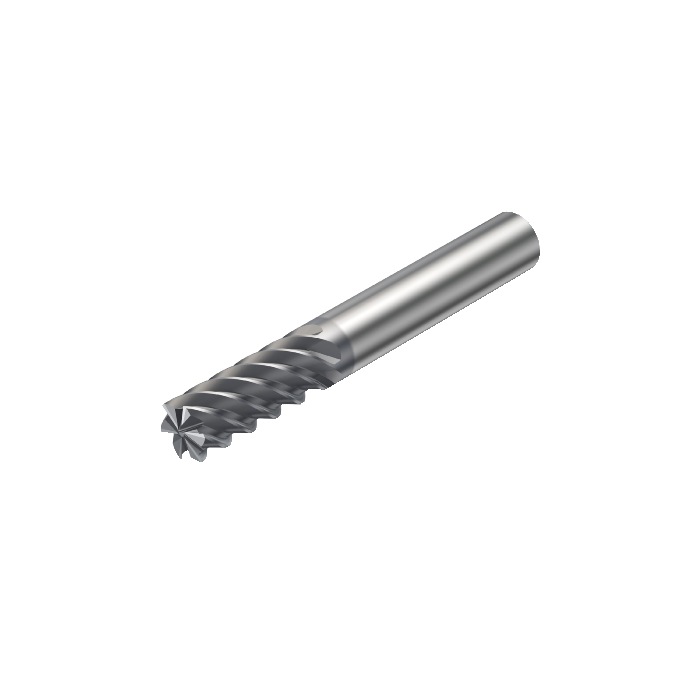

Sandvik Coromant R215.36-06050-AC13L 1620 CoroMill™ Plura solid carbide end mill for Finishing

R 1 704,30 inc. vat
In stock
SKU
5742830
CoroMill® Plura solid carbide end mill for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Finishing
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 57mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.033kg
OAL - Overall Length 57mm
OHX - Maximum Overhang 21mm
KAPR - Tool Cutting Edge Angle 90deg
LU - Usable Length 13mm
APMX - Depth Of Cut Maximum 13mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.1mm
DC - Cutting Diameter 6mm
DCF - Cutting Diameter Face Contact 5.8mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 2.166666666667
ORDCODE R215.36-06050-AC13L 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:02:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
