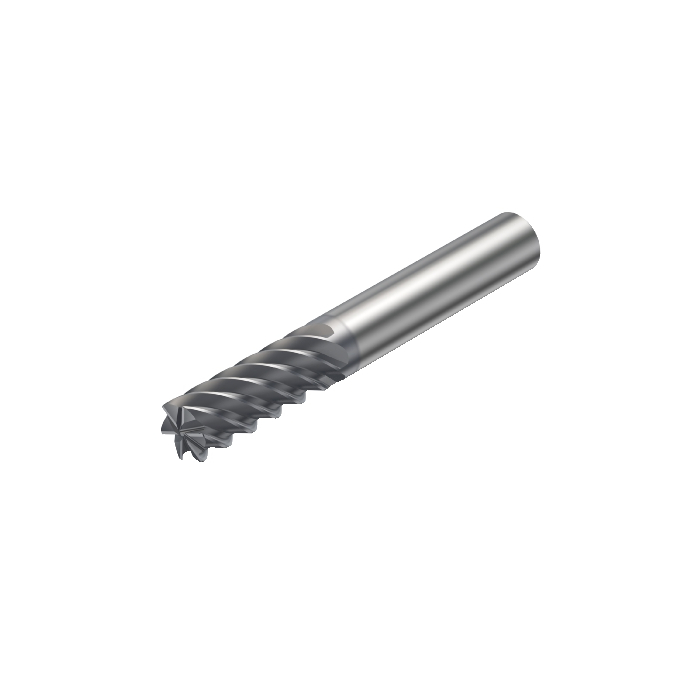

Sandvik Coromant R215.36-10050-AC22H 1610 CoroMill™ Plura solid carbide end mill for Finishing

Name: Sandvik Coromant R215.36-10050-AC22H 1610 CoroMill™ Plura solid carbide end mill for Finishing
SKU: 5742789
Price: 3490.25 ZAR
Availability: InStock

Be the first to review this product

R 3 490,25 inc. vat

In stock

SKU

5742789

CoroMill® Plura solid carbide end mill for Finishing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Finishing

More Information

More Information
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	72mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.09kg
OAL - Overall Length	72mm
OHX - Maximum Overhang	32mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	2deg
LU - Usable Length	22mm
APMX - Depth Of Cut Maximum	22mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.1mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	9.8mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	-8.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	2.2
ORDCODE	R215.36-10050-AC22H 1610
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 08:57:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1610
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
