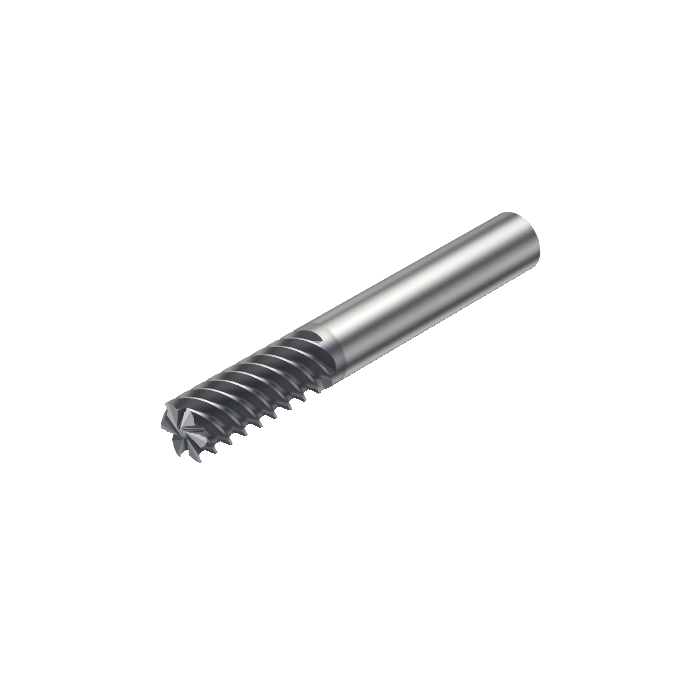

Sandvik Coromant R215.36-18060-AC32L 1620 CoroMill™ Plura solid carbide end mill for Finishing

Name: Sandvik Coromant R215.36-18060-AC32L 1620 CoroMill™ Plura solid carbide end mill for Finishing
SKU: 5742731
Price: 7976.40 ZAR
Availability: InStock

Be the first to review this product

R 7 976,40 inc. vat

In stock

SKU

5742731

CoroMill® Plura solid carbide end mill for Finishing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Finishing

More Information

More Information
DCON - Connection Diameter	18mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	92mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.324kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	44mm
KAPR - Tool Cutting Edge Angle	90deg
LU - Usable Length	32mm
APMX - Depth Of Cut Maximum	32mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.15mm
DC - Cutting Diameter	18mm
DCF - Cutting Diameter Face Contact	17.7mm
FHA - Flute Helix Angle	60deg
GAMF - Radial Rake Angle	5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	1.777777777778
ORDCODE	R215.36-18060-AC32L 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1800_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-06-14 16:06:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
