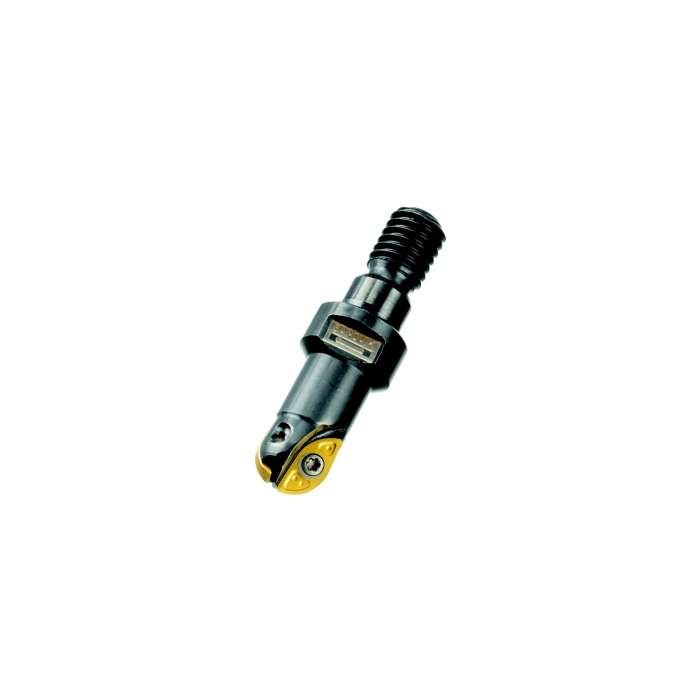

Sandvik Coromant R216-10T08 CoroMill™ 216 ball nose milling cutter

Name: Sandvik Coromant R216-10T08 CoroMill™ 216 ball nose milling cutter
SKU: 5743659
Price: 5807.50 ZAR
Availability: InStock

R 5 807,50 inc. vat

In stock

SKU

5743659

CoroMill® 216 ball nose milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 216 ball nose milling cutter

More Information
DCON - Connection Diameter	12.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	25mm
BD - Body Diameter	9.2mm
LB - Body Length	18mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	127001/min
WT - Weight Of Item	48.3g
OAL - Overall Length	42.5mm
OHX - Maximum Overhang	25mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	85deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	10deg
AN - Clearance Angle Major	9deg
Insert Thickness	1.7mm
LU - Usable Length	17.8mm
APMX - Depth Of Cut Maximum	8.6mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	0mm
DCX - Maximum Cutting Diameter	10mm
AZ - Maximum Plunge Depth	5mm
CEMR - Cutting Edge Major Radius	5mm
PRFRAD - Profile Radius	5mm
ORDCODE	R216-10T08
ADINTMS - Adaptive Interface Machine Direction	M_SAC03_A0080_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:45:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MP1002_1
Hand	R
MIID - Master Insert Identification	R216-10 02
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	10
TDZ - Thread Diameter Size	M 8
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
