R 5 152,00
inc. vat
In stock
SKU
5742809

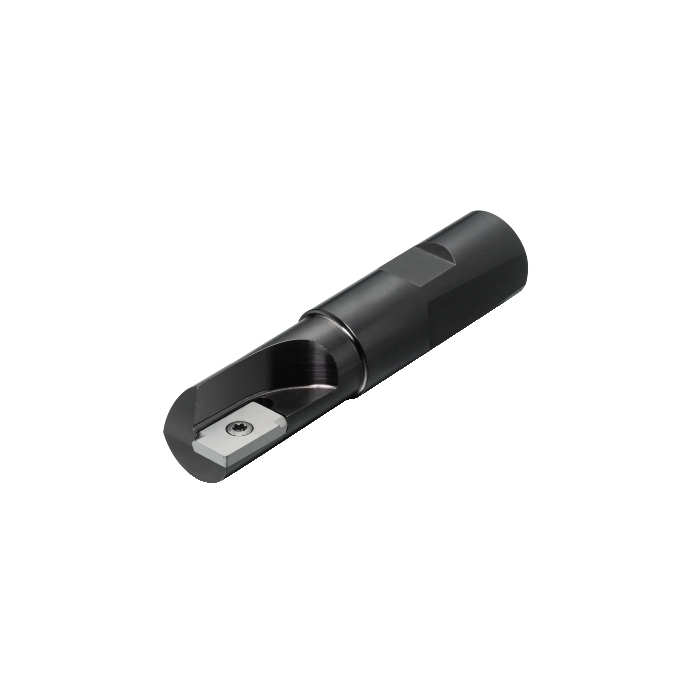

U-Max® square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
U-Max® square shoulder milling cutter
DCON - Connection Diameter | 19.05mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 88.9mm |
TQ - Torque | 2Nm |
RPMX - Rotational Speed Maximum | 151201/min |
WT - Weight Of Item | 0.274kg |
OAL - Overall Length | 88.9mm |
OHX - Maximum Overhang | 37.3mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 90deg |
GAMO - Orthogonal Rake Angle | -8deg |
LAMS - Inclination Angle | 3deg |
Insert Thickness | 3.175mm |
H - Shank Height | 17.15mm |
MHD - Mounting Hole Distance | 25.796875mm |
APMX - Depth Of Cut Maximum | 15mm |
W1 - Insert Width | 9.525mm |
DC - Cutting Diameter | 19.05mm |
DCF - Cutting Diameter Face Contact | 17.45mm |
GAMF - Radial Rake Angle | -7.99999974deg |
GAMP - Axial Rake Angle | 3.00000004deg |
AZ - Maximum Plunge Depth | 15mm |
ORDCODE | R216.2-319 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_R7500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-13 01:48:00.000 |
STDLET - Standard Letter | HB |
STDNO - Standard Number | DIN6535 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MZ1703C_1 |
Hand | R |
MIID - Master Insert Identification | R216.2-170308-1 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 17 |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 1 |
ZEFP - Peripheral Effective Cutting Edge Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
