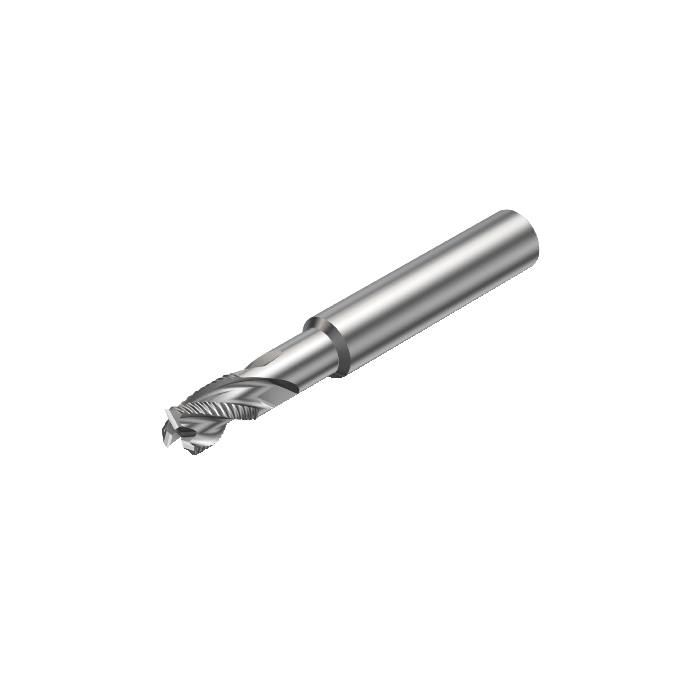

Sandvik Coromant R216.33-12040-AJ16U H10F CoroMill™ Plura solid carbide end mill for roughing with chip breaker

R 3 223,45 inc. vat
In stock
SKU
5743150
CoroMill® Plura solid carbide end mill for roughing with chip breaker
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for roughing with chip breaker
More Information
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.154kg
OAL - Overall Length 100mm
OHX - Maximum Overhang 55mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 15deg
LU - Usable Length 50mm
APMX - Depth Of Cut Maximum 16mm
KCH - Corner Chamfer 55deg
CHW - Corner Chamfer Width 0.83mm
DC - Cutting Diameter 12mm
DCF - Cutting Diameter Face Contact 10.34mm
DN - Neck Diameter 11.4mm
FHA - Flute Helix Angle 40deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 4.166666666667
ORDCODE R216.33-12040-AJ16U H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:10:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade H10F
SUBSTRATE HF
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
