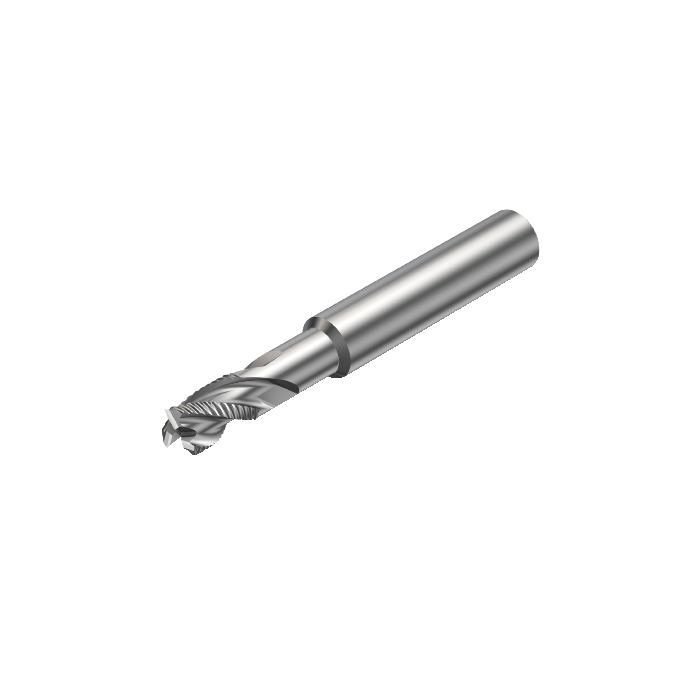

Sandvik Coromant R216.33-16040-AJ20U H10F CoroMill™ Plura solid carbide end mill for roughing with chip breaker

Name: Sandvik Coromant R216.33-16040-AJ20U H10F CoroMill™ Plura solid carbide end mill for roughing with chip breaker
SKU: 5743212
Price: 5202.60 ZAR
Availability: InStock

Be the first to review this product

R 5 202,60 inc. vat

In stock

SKU

5743212

CoroMill® Plura solid carbide end mill for roughing with chip breaker

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for roughing with chip breaker

More Information

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	115mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.313kg
OAL - Overall Length	115mm
OHX - Maximum Overhang	67mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	15deg
LU - Usable Length	63mm
APMX - Depth Of Cut Maximum	20mm
KCH - Corner Chamfer	55deg
CHW - Corner Chamfer Width	1mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	14mm
DN - Neck Diameter	15.2mm
FHA - Flute Helix Angle	40deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	3.9375
ORDCODE	R216.33-16040-AJ20U H10F
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:04:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	H10F
SUBSTRATE	HF
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
