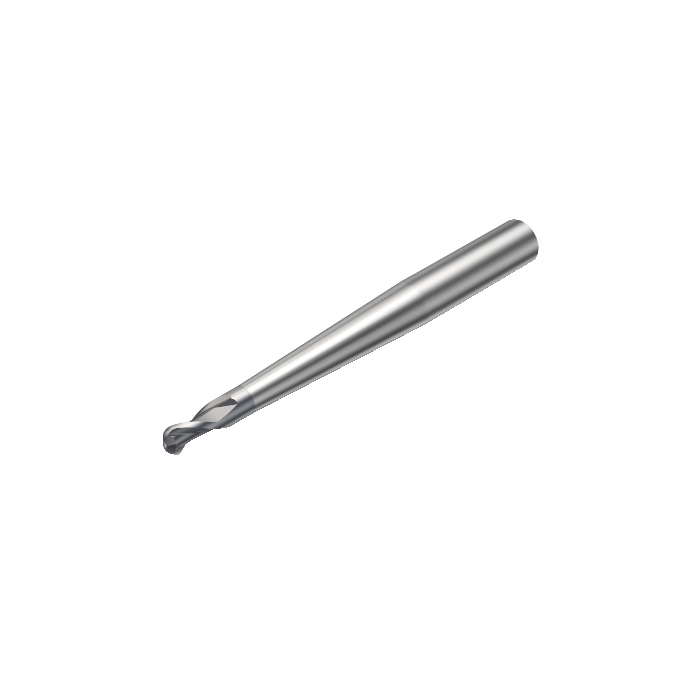

Sandvik Coromant R216.42-08030-AP08G 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant R216.42-08030-AP08G 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 5743463
Price: 2540.35 ZAR
Availability: InStock

Be the first to review this product

R 2 540,35 inc. vat

In stock

SKU

5743463

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BHTA - Body Half Taper Angle	2.5deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.08kg
OAL - Overall Length	100mm
OHX - Maximum Overhang	55mm
RMPX - Maximum Ramping Angle	3deg
RE - Corner Radius	4mm
LU - Usable Length	8mm
APMX - Depth Of Cut Maximum	8mm
DC - Cutting Diameter	8mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	-5.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1
ORDCODE	R216.42-08030-AP08G 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 04:07:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
