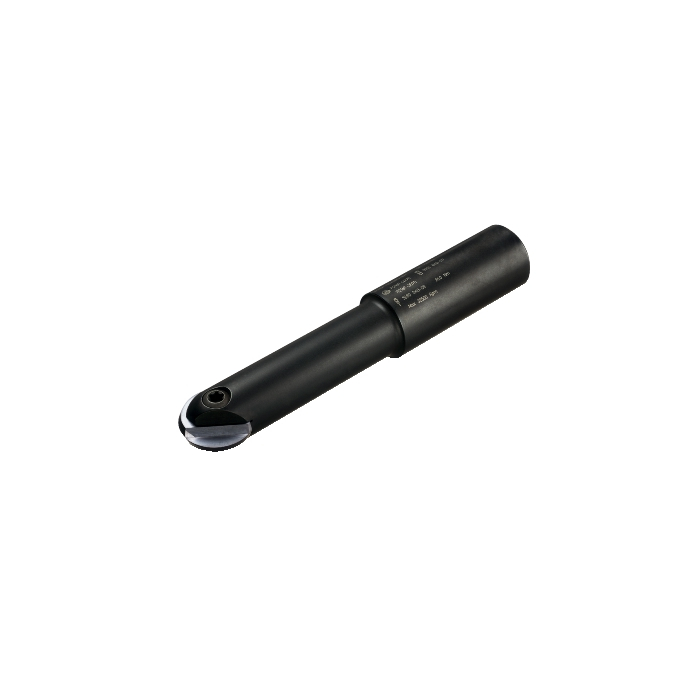

Sandvik Coromant R216F-20A20S-075 CoroMill™ 216F ball nose milling cutter

Name: Sandvik Coromant R216F-20A20S-075 CoroMill™ 216F ball nose milling cutter
SKU: 5743786
Price: 6104.20 ZAR
Availability: OutOfStock

Be the first to review this product

R 6 104,20 inc. vat

Out of stock

SKU

5743786

CoroMill® 216F ball nose milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 216F ball nose milling cutter

More Information

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	141mm
BD - Body Diameter	17mm
LB - Body Length	71.5mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	400001/min
WT - Weight Of Item	0.44kg
OAL - Overall Length	141mm
OHX - Maximum Overhang	91mm
LSC - Clamping Length	50mm
RMPX - Maximum Ramping Angle	85deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
IC - Inscribed Circle Diameter	20mm
Insert Thickness	5mm
LU - Usable Length	75mm
APMX - Depth Of Cut Maximum	3mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	0mm
DCX - Maximum Cutting Diameter	20mm
AZ - Maximum Plunge Depth	0mm
CEMR - Cutting Edge Major Radius	10mm
PRFRAD - Profile Radius	10mm
ORDCODE	R216F-20A20S-075
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2021-12-21 17:30:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MR2050_1
Hand	R
MIID - Master Insert Identification	R216F-20..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	20
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	1
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
