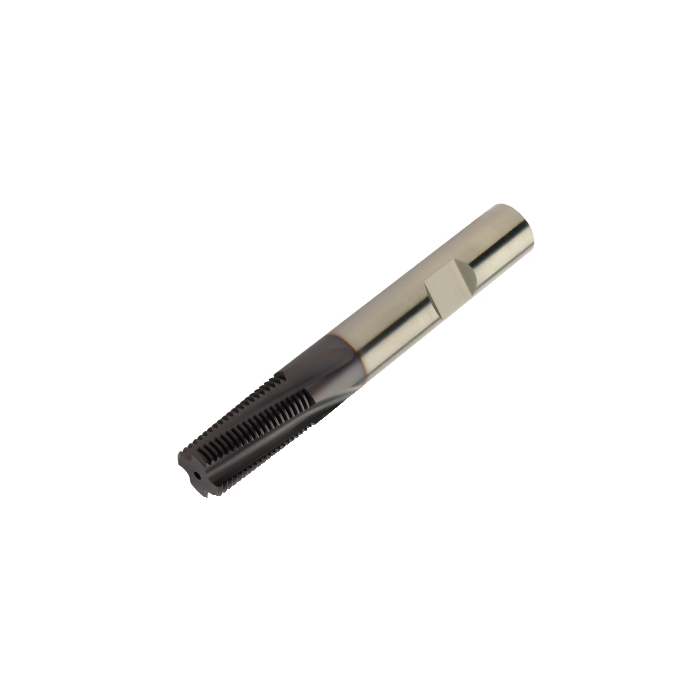

Sandvik Coromant R217.95-160140BC30N 1630 CoroMill™ Plura solid carbide end mill for thread milling

Name: Sandvik Coromant R217.95-160140BC30N 1630 CoroMill™ Plura solid carbide end mill for thread milling
SKU: 6251187
Price: 11876.05 ZAR
Availability: InStock

Be the first to review this product

R 11 876,05 inc. vat

In stock

SKU

6251187

CoroMill® Plura solid carbide end mill for thread milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for thread milling

More Information

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	92mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.247kg
OAL - Overall Length	92mm
OHX - Maximum Overhang	44mm
LSC - Clamping Length	48mm
H - Shank Height	14.2mm
LU - Usable Length	30.8mm
MHD - Mounting Hole Distance	24mm
APMX - Depth Of Cut Maximum	30.8mm
TPI - Threads Per Inch	14
TG - Taper Gradient	0
DC - Cutting Diameter	16mm
FHA - Flute Helix Angle	10deg
GAMF - Radial Rake Angle	7.5deg
ORDCODE	R217.95-160140BC30N 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 01:59:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
THFT - Thread Form Type	WH55
TPT - Thread Profile Type	F
TTP - Thread Type	EXT_INT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
