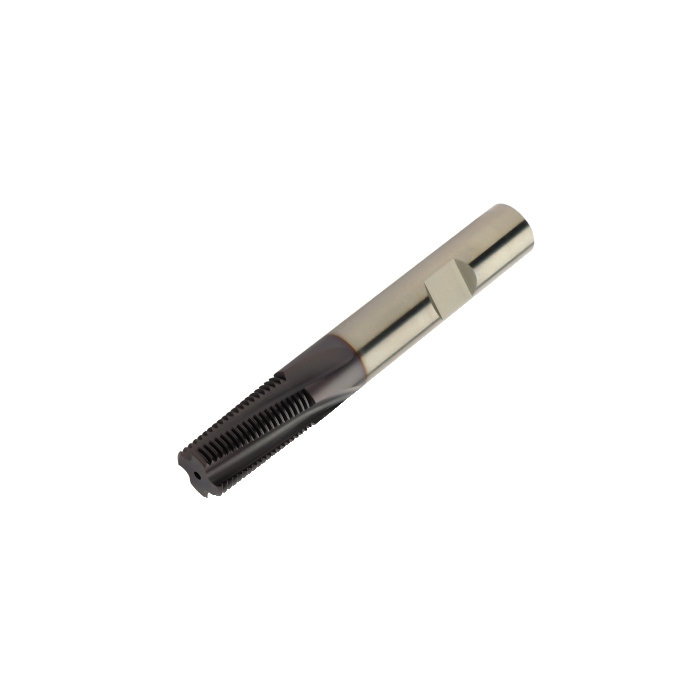

Sandvik Coromant R217.95-250110BC45N 1630 CoroMill™ Plura solid carbide end mill for thread milling

Name: Sandvik Coromant R217.95-250110BC45N 1630 CoroMill™ Plura solid carbide end mill for thread milling
SKU: 6251189
Price: 23750.95 ZAR
Availability: InStock

Be the first to review this product

R 23 750,95 inc. vat

In stock

SKU

6251189

CoroMill® Plura solid carbide end mill for thread milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for thread milling

More Information

More Information
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	121mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.739kg
OAL - Overall Length	121mm
OHX - Maximum Overhang	65mm
LSC - Clamping Length	56mm
H - Shank Height	23mm
LU - Usable Length	46.15mm
MHD - Mounting Hole Distance	32mm
APMX - Depth Of Cut Maximum	46.15mm
TPI - Threads Per Inch	11
TG - Taper Gradient	0
DC - Cutting Diameter	25mm
FHA - Flute Helix Angle	10deg
GAMF - Radial Rake Angle	7.5deg
ORDCODE	R217.95-250110BC45N 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-25 16:04:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
THFT - Thread Form Type	WH55
TPT - Thread Profile Type	F
TTP - Thread Type	EXT_INT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
