R 12 254,40
inc. vat
In stock
SKU
5744366

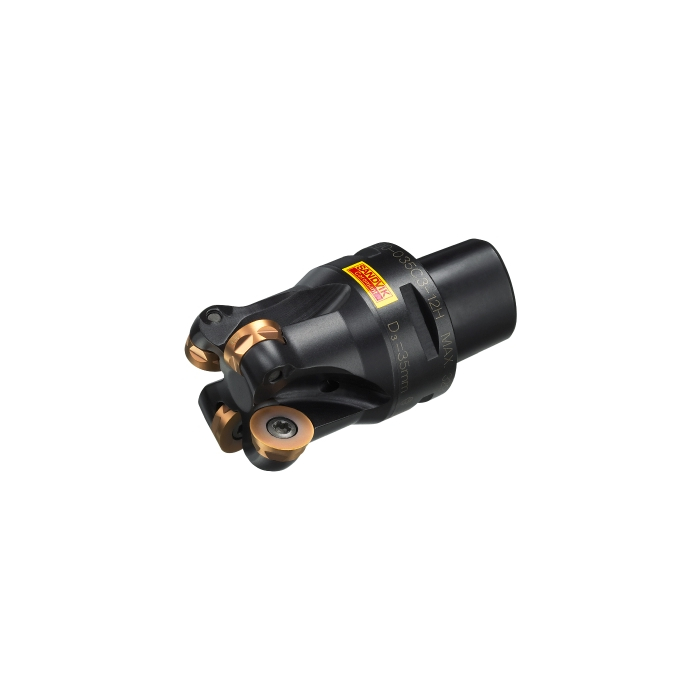

CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
BD - Body Diameter | 47.3mm |
LB - Body Length | 25mm |
TQ - Torque | 1.2Nm |
RPMX - Rotational Speed Maximum | 261001/min |
WT - Weight Of Item | 0.734kg |
OAL - Overall Length | 80mm |
OHX - Maximum Overhang | 50mm |
RMPX - Maximum Ramping Angle | 2deg |
GAMO - Orthogonal Rake Angle | 7deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 8mm |
RE - Corner Radius | 4mm |
Insert Thickness | 2.78mm |
APMX - Depth Of Cut Maximum | 4mm |
DC - Cutting Diameter | 44mm |
DCF - Cutting Diameter Face Contact | 44mm |
GAMF - Radial Rake Angle | 0deg |
GAMP - Axial Rake Angle | 6.99999995deg |
DCX - Maximum Cutting Diameter | 52mm |
AZ - Maximum Plunge Depth | 1.9mm |
ORDCODE | R300-052C5-08H |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:46:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD0828_1 |
Hand | R |
MIID - Master Insert Identification | R300-0828.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 08 |
CICT - Cutting Item Count | 8 |
ZEFP - Peripheral Effective Cutting Edge Count | 8 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
