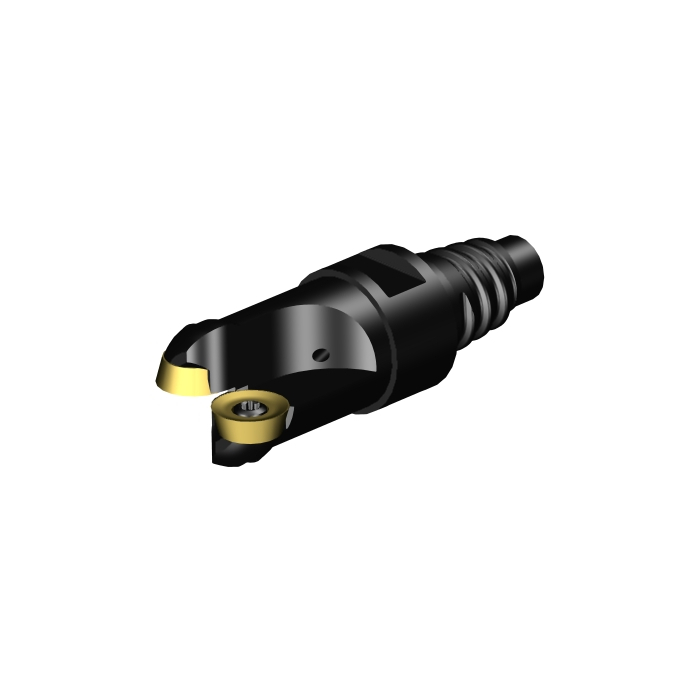

Sandvik Coromant R300-16EH16-08L CoroMill™ 300 face milling cutter

Name: Sandvik Coromant R300-16EH16-08L CoroMill™ 300 face milling cutter
SKU: 6550016
Price: 4332.05 ZAR
Availability: InStock

R 4 332,05 inc. vat

In stock

SKU

6550016

CoroMill® 300 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 300 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	30mm
BD - Body Diameter	14.04mm
LB - Body Length	21.3mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	200001/min
WT - Weight Of Item	0.033kg
OAL - Overall Length	47mm
OHX - Maximum Overhang	30mm
RMPX - Maximum Ramping Angle	20deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	8mm
RE - Corner Radius	4mm
Insert Thickness	2.78mm
APMX - Depth Of Cut Maximum	4mm
DC - Cutting Diameter	8mm
DCF - Cutting Diameter Face Contact	8mm
GAMF - Radial Rake Angle	0deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	16mm
AZ - Maximum Plunge Depth	1.8mm
ORDCODE	R300-16EH16-08L
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:12:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD0828_1
Hand	R
MIID - Master Insert Identification	R300-0828..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
