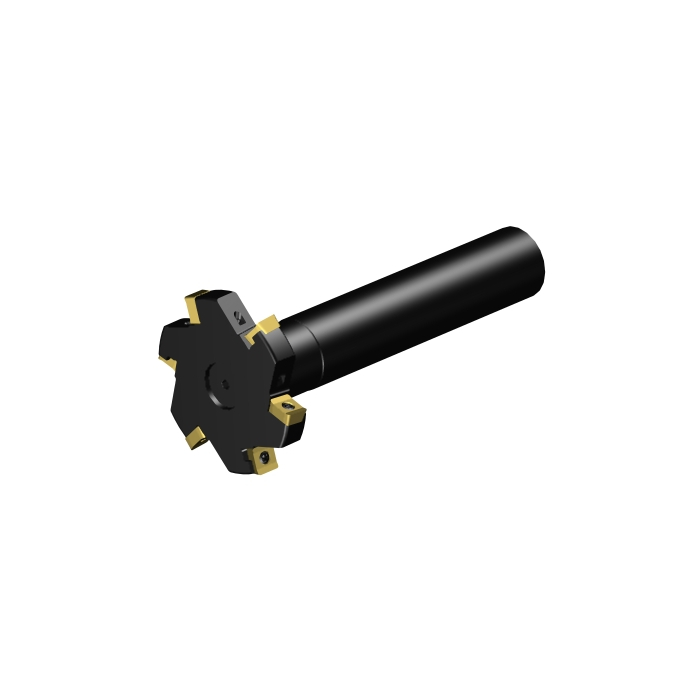

Sandvik Coromant R331.35C-063A25EM100 CoroMill™ 331 full side & face disc milling cutter

Name: Sandvik Coromant R331.35C-063A25EM100 CoroMill™ 331 full side & face disc milling cutter
SKU: 7295397
Price: 13030.65 ZAR
Availability: InStock

Be the first to review this product

R 13 030,65 inc. vat

In stock

SKU

7295397

CoroMill® 331 full side and face disc milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 331 full side and face disc milling cutter

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	140mm
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	210001/min
WT - Weight Of Item	613g
OAL - Overall Length	140mm
OHX - Maximum Overhang	83mm
LSC - Clamping Length	105.5mm
KAPR - Tool Cutting Edge Angle	90deg
AN - Clearance Angle Major	0deg
Insert Thickness	4.45mm
CW - Cutting Width	10mm
CDX - Cutting Depth Maximum	18mm
APMX - Depth Of Cut Maximum	10mm
W1 - Insert Width	9.5mm
DC - Cutting Diameter	63mm
DCF - Cutting Diameter Face Contact	61.4mm
DCX - Maximum Cutting Diameter	63mm
PSW - Premachined Slot Width	0mm
ORDCODE	R331.35C-063A25EM100
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-08-19 13:11:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MW08_1
Hand	R
MIID - Master Insert Identification	N331.1A-08
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	08
TCDCON - Connection Diameter Tolerance	h7
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	True
