R 7 516,40
inc. vat
In stock
SKU
7511670

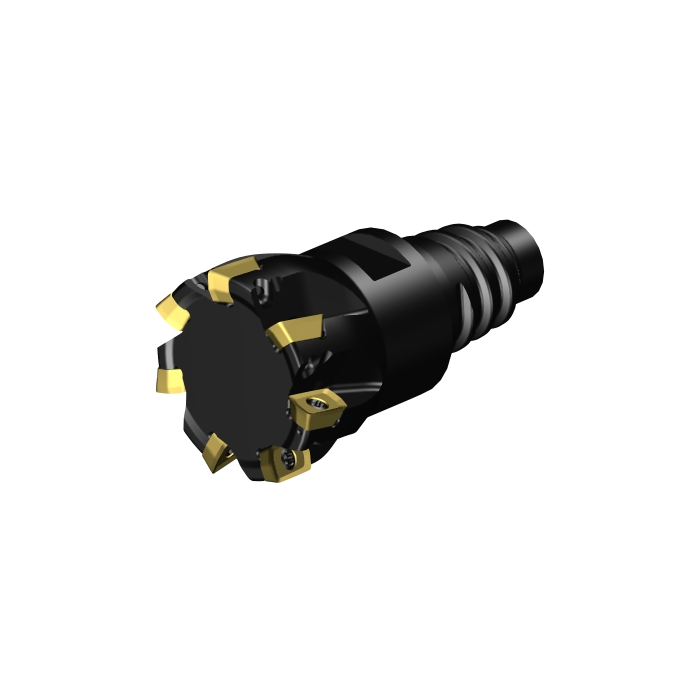

CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 19.3mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 25mm |
BD - Body Diameter | 24mm |
LB - Body Length | 25mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.5Nm |
RPMX - Rotational Speed Maximum | 282001/min |
WT - Weight Of Item | 0.072kg |
OAL - Overall Length | 44.5mm |
OHX - Maximum Overhang | 25mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 1.5deg |
OHN - Minimum Overhang | 25mm |
GAMO - Orthogonal Rake Angle | 20deg |
LAMS - Inclination Angle | 10deg |
AN - Clearance Angle Major | 18deg |
Insert Thickness | 2.4mm |
L - Cutting Edge Length | 6.92mm |
APMX - Depth Of Cut Maximum | 5.8mm |
W1 - Insert Width | 4.06mm |
DC - Cutting Diameter | 25mm |
DCF - Cutting Diameter Face Contact | 24.2mm |
GAMF - Radial Rake Angle | 19.99999978deg |
GAMP - Axial Rake Angle | 9.99999996deg |
AZ - Maximum Plunge Depth | 0.5mm |
ORDCODE | R390-025EH20-07H |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0200_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:22:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MH0702_1 |
Hand | R |
MIID - Master Insert Identification | 390R-07.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 07 |
CICT - Cutting Item Count | 7 |
ZEFP - Peripheral Effective Cutting Edge Count | 7 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
