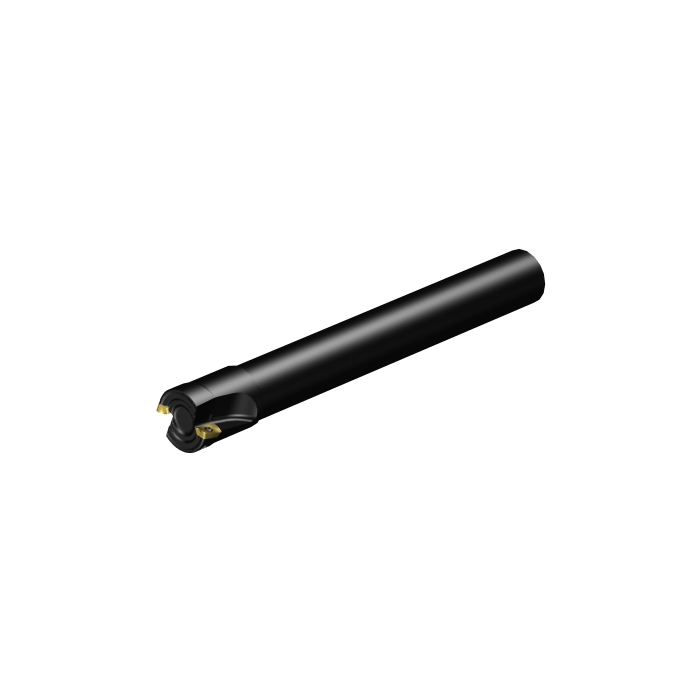

Sandvik Coromant R390-030A25L-11L CoroMill™ 390 square shoulder milling cutter

Name: Sandvik Coromant R390-030A25L-11L CoroMill™ 390 square shoulder milling cutter
SKU: 5745441
Price: 5957.00 ZAR
Availability: InStock

Be the first to review this product

R 5 957,00 inc. vat

In stock

SKU

5745441

CoroMill® 390 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 390 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	210mm
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	110001/min
WT - Weight Of Item	760g
OAL - Overall Length	210mm
OHX - Maximum Overhang	154mm
LSC - Clamping Length	170mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	3.8deg
GAMO - Orthogonal Rake Angle	-8.104deg
LAMS - Inclination Angle	18.8deg
AN - Clearance Angle Major	21deg
Insert Thickness	3.59mm
L - Cutting Edge Length	11.45mm
APMX - Depth Of Cut Maximum	10mm
W1 - Insert Width	6.8mm
DC - Cutting Diameter	30mm
DCF - Cutting Diameter Face Contact	28.4mm
GAMF - Radial Rake Angle	-8.10399979deg
GAMP - Axial Rake Angle	18.80000007deg
AZ - Maximum Plunge Depth	1mm
ORDCODE	R390-030A25L-11L
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:47:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MH11T3_1
Hand	R
MIID - Master Insert Identification	R390-11..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
