R 6 820,65
inc. vat
In stock
SKU
5746620

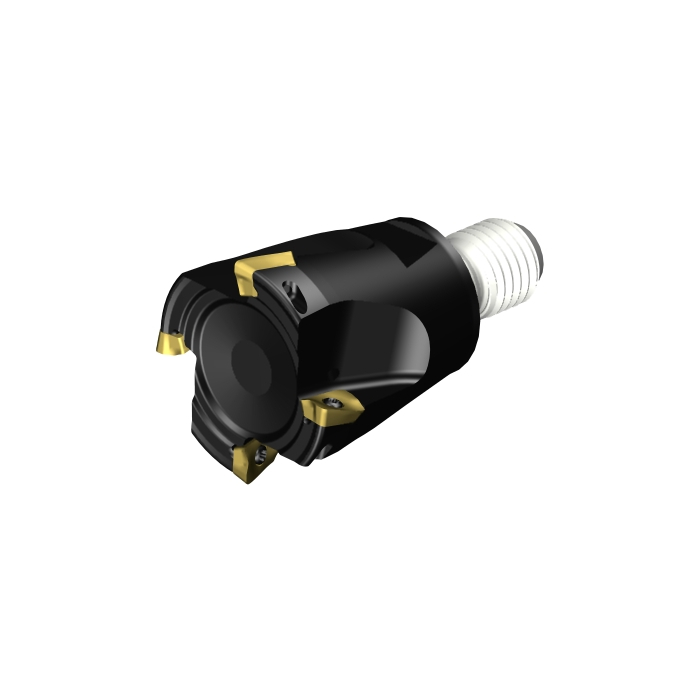

CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 28.8mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 45mm |
TQ - Torque | 1.2Nm |
RPMX - Rotational Speed Maximum | 91001/min |
WT - Weight Of Item | 0.291kg |
OAL - Overall Length | 69mm |
OHX - Maximum Overhang | 45mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 1.9deg |
GAMO - Orthogonal Rake Angle | -6.198deg |
LAMS - Inclination Angle | 22.49deg |
AN - Clearance Angle Major | 21deg |
Insert Thickness | 3.59mm |
L - Cutting Edge Length | 11.45mm |
APMX - Depth Of Cut Maximum | 10mm |
W1 - Insert Width | 6.8mm |
DC - Cutting Diameter | 42mm |
DCF - Cutting Diameter Face Contact | 40.4mm |
GAMF - Radial Rake Angle | -6.19800023deg |
GAMP - Axial Rake Angle | 22.49000004deg |
AZ - Maximum Plunge Depth | 1mm |
ORDCODE | R390-42T16-11M |
ADINTMS - Adaptive Interface Machine Direction | M_SAC03_A0160_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:48:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MH11T3_1 |
Hand | R |
MIID - Master Insert Identification | R390-11.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 11 |
TDZ - Thread Diameter Size | M 16 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
