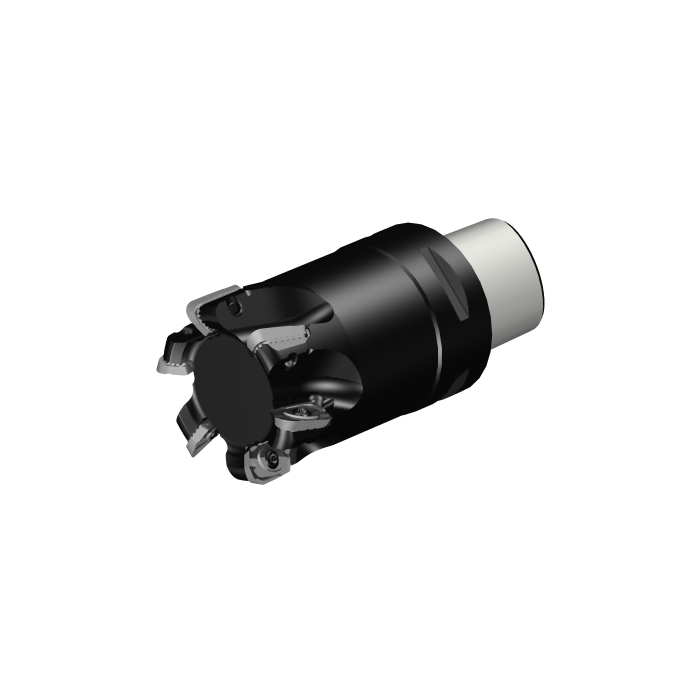

Sandvik Coromant R790-054C5S1-16H CoroMill™ 790 square shoulder milling cutter

Name: Sandvik Coromant R790-054C5S1-16H CoroMill™ 790 square shoulder milling cutter
SKU: 5912562
Price: 19606.35 ZAR
Availability: InStock

Be the first to review this product

R 19 606,35 inc. vat

In stock

SKU

5912562

CoroMill® 790 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 790 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	81mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	280001/min
WT - Weight Of Item	1.122kg
OAL - Overall Length	111mm
OHX - Maximum Overhang	81mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	6deg
GAMO - Orthogonal Rake Angle	2.5deg
LAMS - Inclination Angle	11deg
Insert Thickness	4mm
APMX - Depth Of Cut Maximum	12mm
W1 - Insert Width	11mm
DC - Cutting Diameter	54mm
DCF - Cutting Diameter Face Contact	50mm
GAMF - Radial Rake Angle	2.49999983deg
GAMP - Axial Rake Angle	11.00000005deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	R790-054C5S1-16H
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:08:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_ML1604_1
Hand	R
MIID - Master Insert Identification	R790-1604..
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
