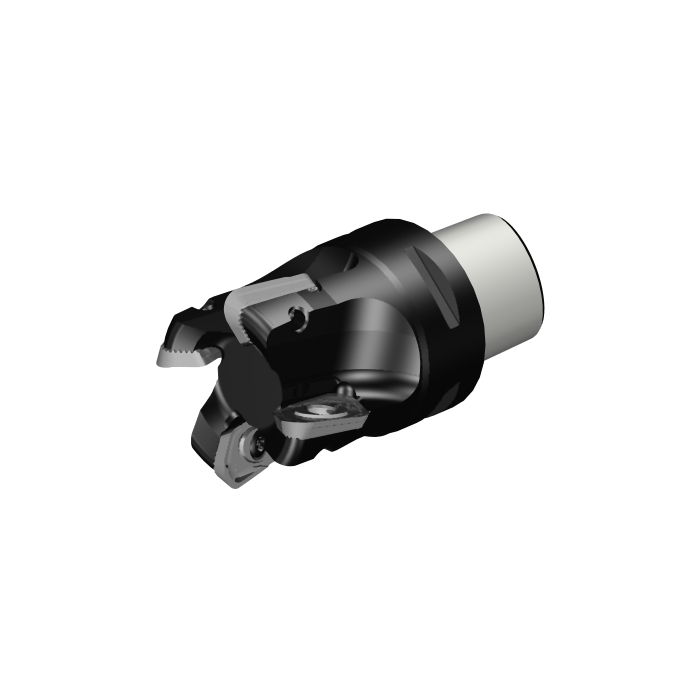

Sandvik Coromant R790-054C5S2-22H CoroMill™ 790 square shoulder milling cutter

Name: Sandvik Coromant R790-054C5S2-22H CoroMill™ 790 square shoulder milling cutter
SKU: 5912563
Price: 17155.70 ZAR
Availability: InStock

Be the first to review this product

R 17 155,70 inc. vat

In stock

SKU

5912563

CoroMill® 790 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 790 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	66mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	280001/min
WT - Weight Of Item	0.734kg
OAL - Overall Length	96mm
OHX - Maximum Overhang	66mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	12deg
GAMO - Orthogonal Rake Angle	6.3deg
LAMS - Inclination Angle	13deg
Insert Thickness	5mm
APMX - Depth Of Cut Maximum	18mm
W1 - Insert Width	16mm
DC - Cutting Diameter	54mm
DCF - Cutting Diameter Face Contact	46mm
GAMF - Radial Rake Angle	6.30000012deg
GAMP - Axial Rake Angle	12.99999994deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	R790-054C5S2-22H
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-04-13 02:10:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_ML2205_1
Hand	R
MIID - Master Insert Identification	R790-2205..
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	22
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
