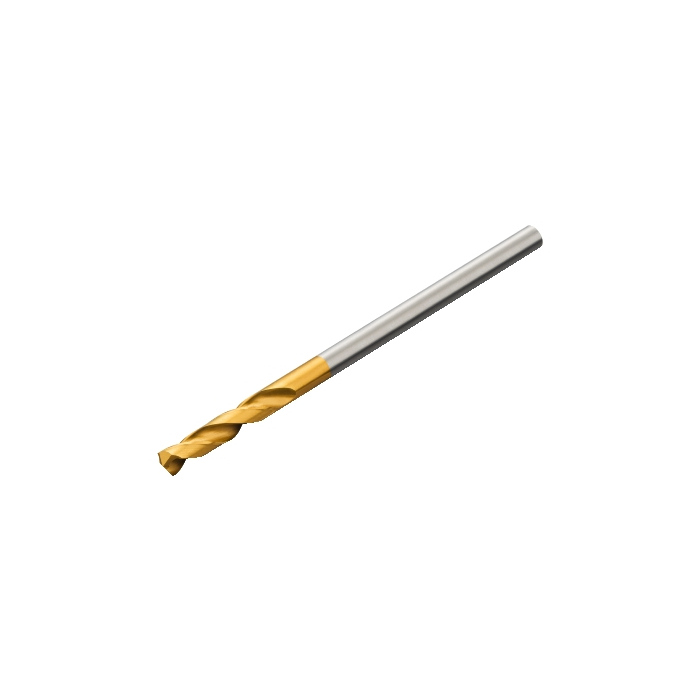

Sandvik Coromant R840-0230-50-A0B 1020 CoroDrill® Delta-C solid carbide drill

R 1 118,95 inc. vat
In stock
SKU
5746781
CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® Delta-C solid carbide drill
More Information
DCON - Connection Diameter 2.3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 39.6mm
BD - Body Diameter 2.3mm
LB - Body Length 13mm
RPMX - Rotational Speed Maximum 345991/min
WT - Weight Of Item 0.011kg
OAL - Overall Length 40mm
OHX - Maximum Overhang 12.5814mm
LSC - Clamping Length 22.95mm
GAMO - Orthogonal Rake Angle 20.45deg
LU - Usable Length 9.6mm
DC - Cutting Diameter 2.3mm
FHA - Flute Helix Angle 30deg
ULDR - Usable Length Diameter Ratio 4.173913043478
PL - Point Length 0.4mm
LCF - Chip Flute Length 13mm
SIG - Point Angle 140deg
ORDCODE R840-0230-50-A0B 1020
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F2300_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-05-07 01:06:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1020
COATING PVD TiCN+TiN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
