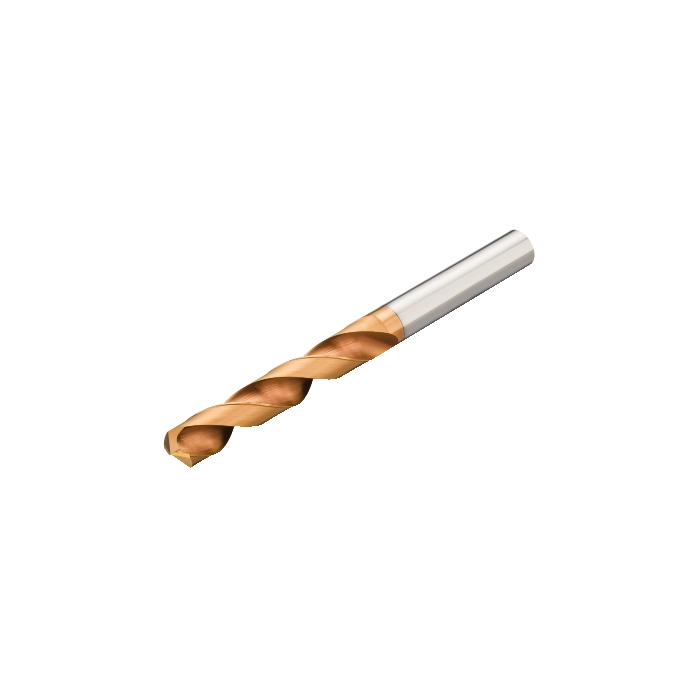

Sandvik Coromant R840-0440-50-A0A 1220 CoroDrill® Delta-C solid carbide drill

Name: Sandvik Coromant R840-0440-50-A0A 1220 CoroDrill® Delta-C solid carbide drill
SKU: 5747099
Price: 1880.25 ZAR
Availability: OutOfStock

Be the first to review this product

R 1 880,25 inc. vat

Out of stock

SKU

5747099

CoroDrill® Delta-C solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® Delta-C solid carbide drill

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	73.3mm
BD - Body Diameter	4.4mm
LB - Body Length	38mm
RPMX - Rotational Speed Maximum	166391/min
WT - Weight Of Item	0.032kg
OAL - Overall Length	74mm
OHX - Maximum Overhang	37.2562mm
LSC - Clamping Length	36mm
GAMO - Orthogonal Rake Angle	22.18deg
LU - Usable Length	22.7mm
DC - Cutting Diameter	4.4mm
FHA - Flute Helix Angle	32.41378deg
ULDR - Usable Length Diameter Ratio	5.159090909091
PL - Point Length	0.7mm
LCF - Chip Flute Length	36mm
SIG - Point Angle	140deg
ORDCODE	R840-0440-50-A0A 1220
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 12:39:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1220
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 L
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
