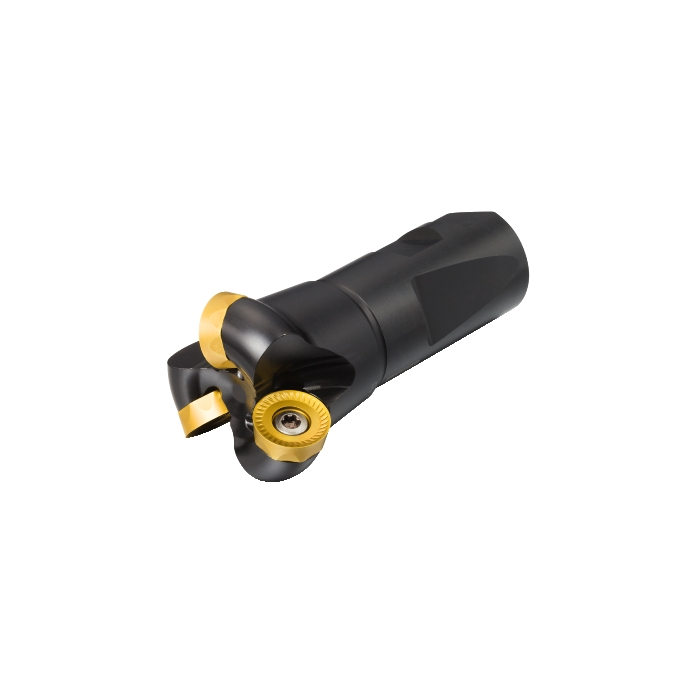

Sandvik Coromant RA200-016MN25-09M CoroMill™ 200 face milling cutter
R 5 613,15
inc. vat
In stock
SKU
5737641
CoroMill® 200 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 face milling cutter
| DCON - Connection Diameter | 25.4mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 132mm |
| BD - Body Diameter | 25.4mm |
| LB - Body Length | 76.2mm |
| TQ - Torque | 2Nm |
| RPMX - Rotational Speed Maximum | 375001/min |
| WT - Weight Of Item | 0.549kg |
| OAL - Overall Length | 132mm |
| OHX - Maximum Overhang | 76mm |
| RMPX - Maximum Ramping Angle | 13deg |
| GAMO - Orthogonal Rake Angle | -7deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 4.7625mm |
| Insert Thickness | 3.96875mm |
| H - Shank Height | 23.5mm |
| LU - Usable Length | 76.2mm |
| APMX - Depth Of Cut Maximum | 4.7498mm |
| DC - Cutting Diameter | 15.875mm |
| DCF - Cutting Diameter Face Contact | 15.875mm |
| GAMF - Radial Rake Angle | 0deg |
| GAMP - Axial Rake Angle | -6.99999995deg |
| DCX - Maximum Cutting Diameter | 25.4mm |
| AZ - Maximum Plunge Depth | 2.7mm |
| ORDCODE | RA200-016MN25-09M |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLWNW_S1000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:34:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC09T3_1 |
| Hand | R |
| MIID - Master Insert Identification | RCKT 09 T3 00 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 09 |
| TCDCON - Connection Diameter Tolerance | h6 |
| CICT - Cutting Item Count | 2 |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
