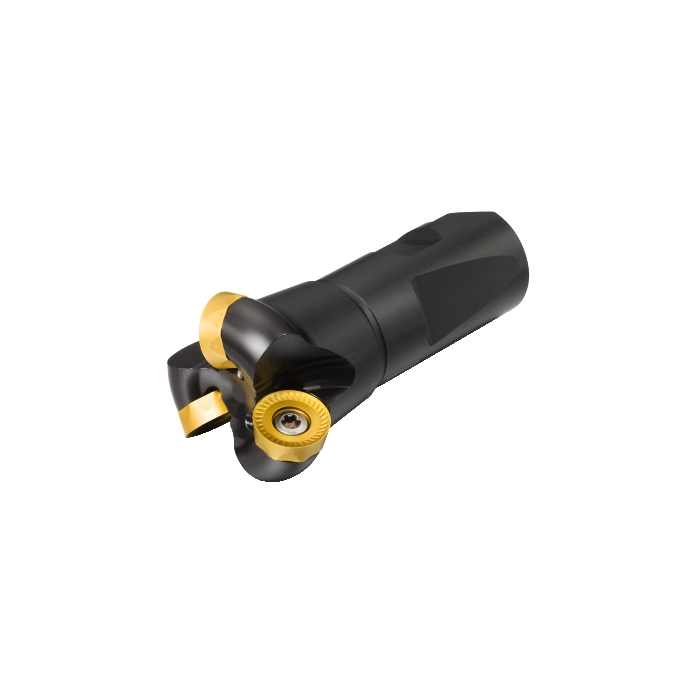

Sandvik Coromant RA200-019MN32-13M CoroMill™ 200 face milling cutter

Name: Sandvik Coromant RA200-019MN32-13M CoroMill™ 200 face milling cutter
SKU: 5737644
Price: 6239.90 ZAR
Availability: InStock

R 6 239,90 inc. vat

In stock

SKU

5737644

CoroMill® 200 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 200 face milling cutter

More Information
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	153mm
BD - Body Diameter	31.75mm
LB - Body Length	95.25mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	310001/min
WT - Weight Of Item	0.86kg
OAL - Overall Length	153mm
OHX - Maximum Overhang	93mm
RMPX - Maximum Ramping Angle	13deg
GAMO - Orthogonal Rake Angle	-7deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	6.35mm
Insert Thickness	4.7625mm
H - Shank Height	29.36mm
LU - Usable Length	95.25mm
APMX - Depth Of Cut Maximum	6.35mm
DC - Cutting Diameter	19.05mm
DCF - Cutting Diameter Face Contact	19.05mm
GAMF - Radial Rake Angle	0deg
GAMP - Axial Rake Angle	-6.99999995deg
DCX - Maximum Cutting Diameter	31.75mm
AZ - Maximum Plunge Depth	3.5mm
ORDCODE	RA200-019MN32-13M
ADINTMS - Adaptive Interface Machine Direction	M_CYLWNW_S1250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:34:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RC1304_2
Hand	R
MIID - Master Insert Identification	RCKT 13 04 00
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	13
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
