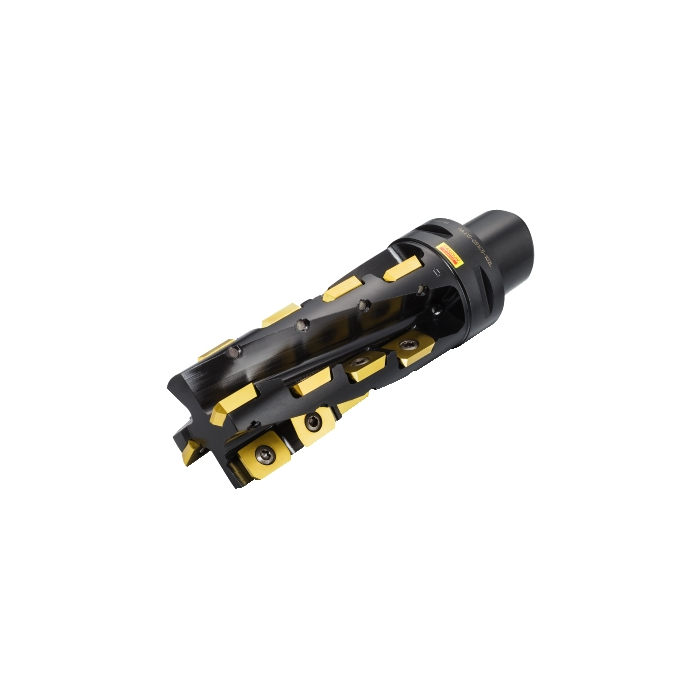

Sandvik Coromant RA215-051C5-102L T-Max™ Long edge square shoulder milling cutter

Name: Sandvik Coromant RA215-051C5-102L T-Max™ Long edge square shoulder milling cutter
SKU: 5740166
Price: 34939.30 ZAR
Availability: InStock

Be the first to review this product

R 34 939,30 inc. vat

In stock

SKU

5740166

T-Max® Long edge square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® Long edge square shoulder milling cutter

More Information

More Information
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	139.7mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	78001/min
WT - Weight Of Item	1.448kg
OAL - Overall Length	177.853mm
OHX - Maximum Overhang	139.7mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	5deg
AN - Clearance Angle Major	15deg
RE - Corner Radius	1.5875mm
Insert Thickness	4.7498mm
APMX - Depth Of Cut Maximum	101.6mm
W1 - Insert Width	13.7668mm
DC - Cutting Diameter	50.8mm
DCF - Cutting Diameter Face Contact	47.6mm
GAMF - Radial Rake Angle	0deg
GAMP - Axial Rake Angle	4.9999998deg
AZ - Maximum Plunge Depth	0mm
ORDCODE	RA215-051C5-102L
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-05-16 19:20:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_LD1904_1
Hand	R
MIID - Master Insert Identification	LDHT 19 04 00
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	19
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
