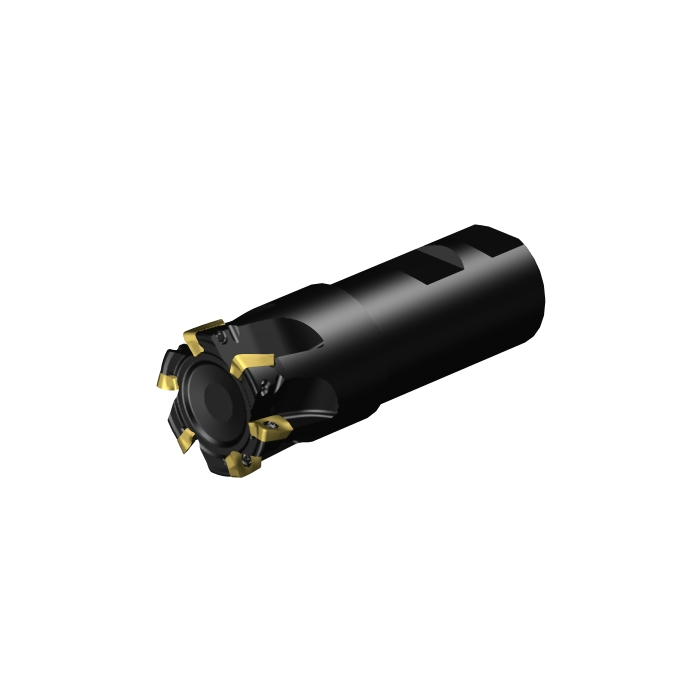

Sandvik Coromant RA390-038M32-11H CoroMill™ 390 square shoulder milling cutter

R 7 389,90 inc. vat
In stock
SKU
5740165
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 31.75mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 101.625mm
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 278001/min
WT - Weight Of Item 0.609kg
OAL - Overall Length 101.625mm
OHX - Maximum Overhang 43.685mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 2.2deg
GAMO - Orthogonal Rake Angle -6.756deg
LAMS - Inclination Angle 21.35deg
AN - Clearance Angle Major 21deg
Insert Thickness 3.59mm
H - Shank Height 29.36mm
MHD - Mounting Hole Distance 28.971875mm
L - Cutting Edge Length 11.45mm
APMX - Depth Of Cut Maximum 10.0076mm
W1 - Insert Width 6.8mm
DC - Cutting Diameter 38.1mm
DCF - Cutting Diameter Face Contact 36.5mm
GAMF - Radial Rake Angle -6.75600013deg
GAMP - Axial Rake Angle 21.35000009deg
AZ - Maximum Plunge Depth 1mm
ORDCODE RA390-038M32-11H
ADINTMS - Adaptive Interface Machine Direction M_CYLW_S1250_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 14:44:00.000
STDLET - Standard Letter HB
STDNO - Standard Number DIN6535
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MH11T3_1
Hand R
MIID - Master Insert Identification R390-11..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 11
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 6
ZEFP - Peripheral Effective Cutting Edge Count 6
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
