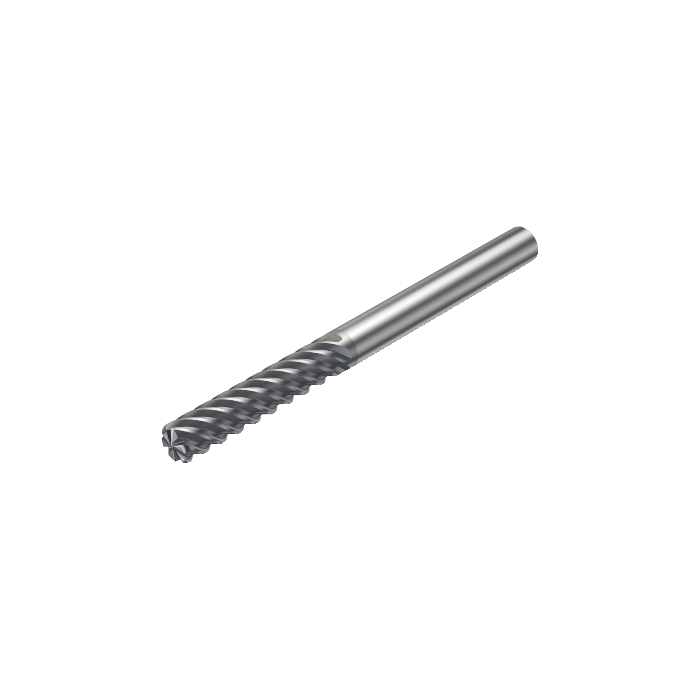

Sandvik Coromant RA215.26-3250DAK24L 1620 CoroMill™ Plura solid carbide end mill for Finishing

Name: Sandvik Coromant RA215.26-3250DAK24L 1620 CoroMill™ Plura solid carbide end mill for Finishing
SKU: 5739294
Price: 4908.20 ZAR
Availability: InStock

Be the first to review this product

R 4 908,20 inc. vat

In stock

SKU

5739294

CoroMill® Plura solid carbide end mill for Finishing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Finishing

More Information

More Information
DCON - Connection Diameter	12.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	101.6mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.184kg
OAL - Overall Length	101.6mm
OHX - Maximum Overhang	56.3mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	3deg
RE - Corner Radius	1.588mm
LU - Usable Length	38.1mm
APMX - Depth Of Cut Maximum	38.1mm
DC - Cutting Diameter	12.7mm
DCF - Cutting Diameter Face Contact	9.524mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	3
ORDCODE	RA215.26-3250DAK24L 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 08:53:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
