Sandvik Coromant RA216-13 02 E-M 1025 CoroMill™ 216 ball nose insert
R 641,70
inc. vat
In stock
SKU
5739122
CoroMill® 216 ball nose insert
Reliable nationwide shipping
Delivery in 4 - 5 days

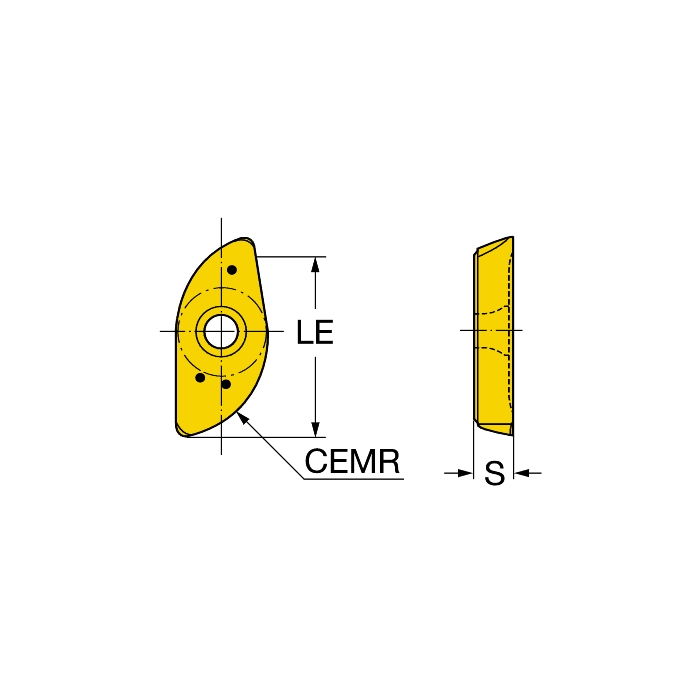

CoroMill® 216 ball nose insert
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.4g |
| AN - Clearance Angle Major | 9deg |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.9mm |
| LE - Cutting Edge Effective Length | 11.2776mm |
| GAN - Insert Rake Angle | 0deg |
| CEMR - Cutting Edge Major Radius | 6.21mm |
| ORDCODE | RA216-13 02 E-M 1025 |
| CHANGEDATE | 2022-09-23 16:39:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 12.7 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MQ1302_1 |
| Grade | 1025 |
| COATING | PVD TiCN+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | E-M |
| CEDC - Cutting Edge Count | 2 |
