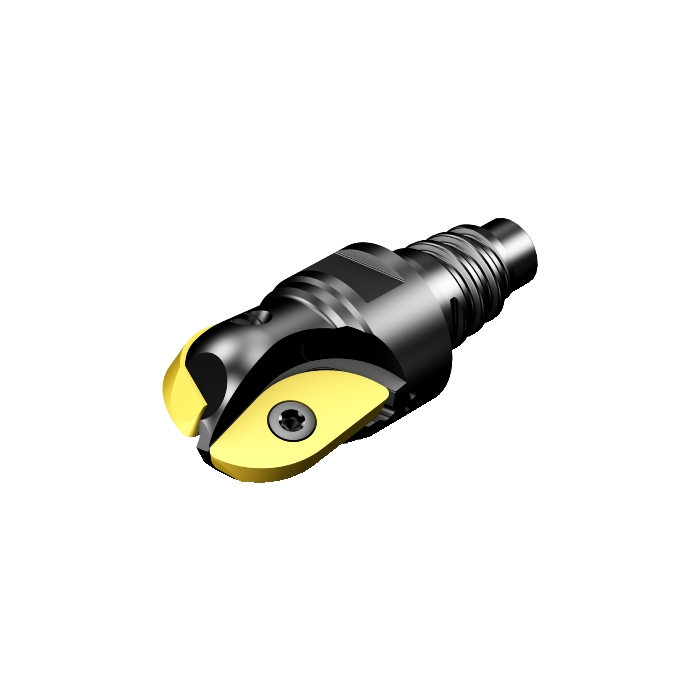

Sandvik Coromant RA216-16EH16 CoroMill™ 216 ball nose milling cutter

Name: Sandvik Coromant RA216-16EH16 CoroMill™ 216 ball nose milling cutter
SKU: 6550054
Price: 6509.00 ZAR
Availability: InStock

R 6 509,00 inc. vat

In stock

SKU

6550054

CoroMill® 216 ball nose milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 216 ball nose milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	25mm
TQ - Torque	1.2Nm
RPMX - Rotational Speed Maximum	127001/min
WT - Weight Of Item	0.026kg
OAL - Overall Length	42mm
OHX - Maximum Overhang	25mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	85deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	10deg
AN - Clearance Angle Major	9deg
Insert Thickness	3.175mm
APMX - Depth Of Cut Maximum	14.1986mm
DC - Cutting Diameter	15.875mm
DCF - Cutting Diameter Face Contact	0mm
DCX - Maximum Cutting Diameter	15.875mm
AZ - Maximum Plunge Depth	0mm
CEMR - Cutting Edge Major Radius	7.9375mm
PRFRAD - Profile Radius	7.9375mm
ORDCODE	RA216-16EH16
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:13:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MQ1603_1
Hand	R
MIID - Master Insert Identification	RA216-16 03
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	15.875
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
