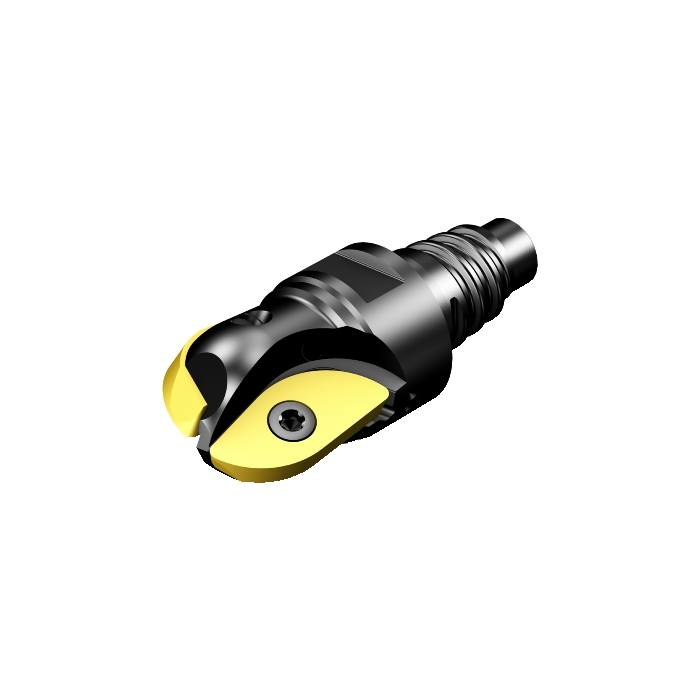

Sandvik Coromant RA216-19EH20 CoroMill™ 216 ball nose milling cutter

Name: Sandvik Coromant RA216-19EH20 CoroMill™ 216 ball nose milling cutter
SKU: 6550055
Price: 7315.15 ZAR
Availability: InStock

R 7 315,15 inc. vat

In stock

SKU

6550055

CoroMill® 216 ball nose milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 216 ball nose milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	18.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	30mm
TQ - Torque	2Nm
RPMX - Rotational Speed Maximum	127001/min
WT - Weight Of Item	0.07kg
OAL - Overall Length	49.5mm
OHX - Maximum Overhang	30mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	85deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	10deg
AN - Clearance Angle Major	9deg
Insert Thickness	3.96875mm
APMX - Depth Of Cut Maximum	16.9926mm
DC - Cutting Diameter	19.05mm
DCF - Cutting Diameter Face Contact	0mm
DCX - Maximum Cutting Diameter	19.05mm
AZ - Maximum Plunge Depth	0mm
CEMR - Cutting Edge Major Radius	9.525mm
PRFRAD - Profile Radius	9.525mm
ORDCODE	RA216-19EH20
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-25 22:00:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MQ19T3_1
Hand	R
MIID - Master Insert Identification	RA216-19 T3
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	19.05
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
