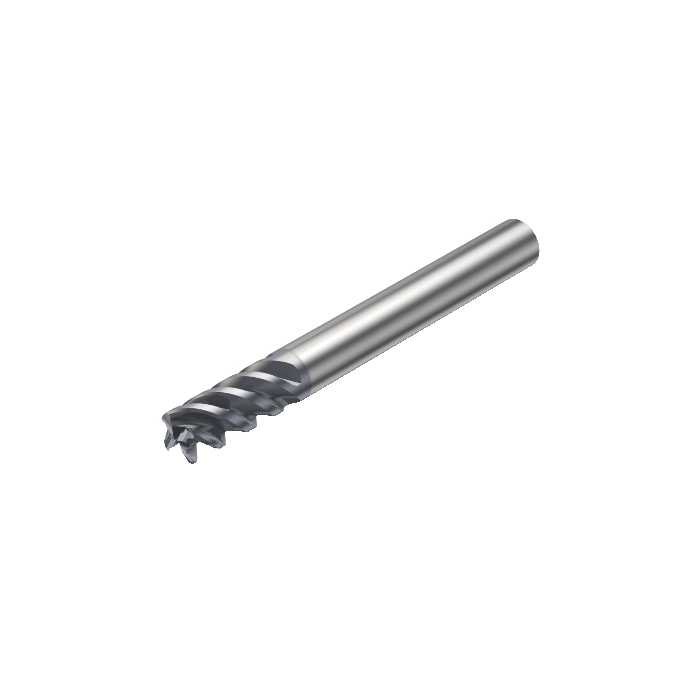

Sandvik Coromant RA216.23-1250BAK06H 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
R 1 721,55
inc. vat
In stock
SKU
5740191
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
| DCON - Connection Diameter | 6.35mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 76.2mm |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.042kg |
| OAL - Overall Length | 76.2mm |
| OHX - Maximum Overhang | 40.2mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 5deg |
| RE - Corner Radius | 0.794mm |
| LU - Usable Length | 9.525mm |
| APMX - Depth Of Cut Maximum | 9.525mm |
| DC - Cutting Diameter | 4.76mm |
| DCF - Cutting Diameter Face Contact | 3.172mm |
| FHA - Flute Helix Angle | 50deg |
| GAMF - Radial Rake Angle | -18.5deg |
| GAMP - Axial Rake Angle | 1.5deg |
| ULDR - Usable Length Diameter Ratio | 2.001050420168 |
| ORDCODE | RA216.23-1250BAK06H 1620 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-04-22 08:54:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1620 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CCC - Center Cutting Capability | True |
| CPDF - Cutting Pitch Differential | False |
