Sandvik Coromant RA216.24-0830BAK02G 1610 CoroMill™ Plura solid carbide end mill for Hard Part Milling
R 1 431,75
inc. vat
Out of stock
SKU
5740201

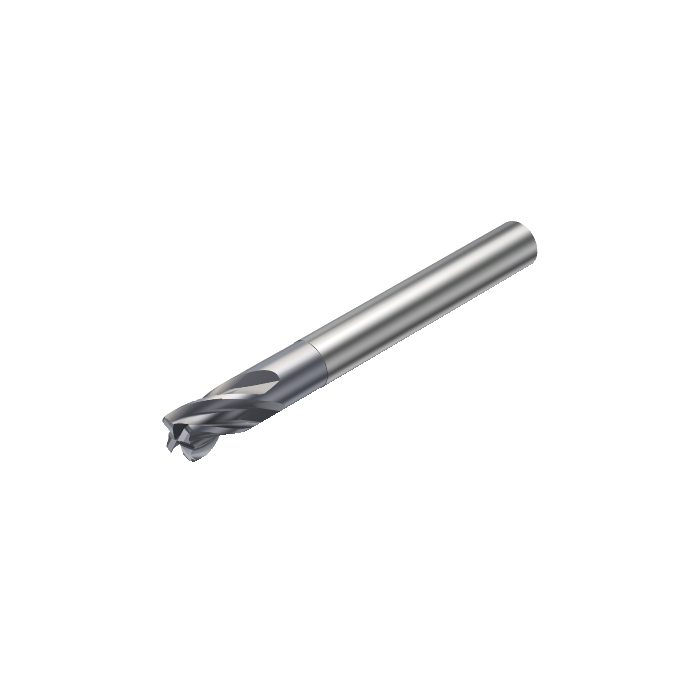

CoroMill® Plura solid carbide end mill for Hard Part Milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Hard Part Milling
| DCON - Connection Diameter | 6.35mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 76.2mm |
| BD - Body Diameter | 3.07mm |
| LB - Body Length | 21.9mm |
| BHTA - Body Half Taper Angle | 30deg |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.042kg |
| OAL - Overall Length | 76.2mm |
| OHX - Maximum Overhang | 40.2mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 2deg |
| RE - Corner Radius | 0.794mm |
| LU - Usable Length | 19.05mm |
| APMX - Depth Of Cut Maximum | 3.175mm |
| DC - Cutting Diameter | 3.175mm |
| DCF - Cutting Diameter Face Contact | 1.587mm |
| DN - Neck Diameter | 3.07mm |
| FHA - Flute Helix Angle | 30deg |
| GAMF - Radial Rake Angle | 1.5deg |
| GAMP - Axial Rake Angle | 1.5deg |
| ULDR - Usable Length Diameter Ratio | 6 |
| ORDCODE | RA216.24-0830BAK02G 1610 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-04-22 09:01:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1610 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CCC - Center Cutting Capability | True |
| CPDF - Cutting Pitch Differential | False |
