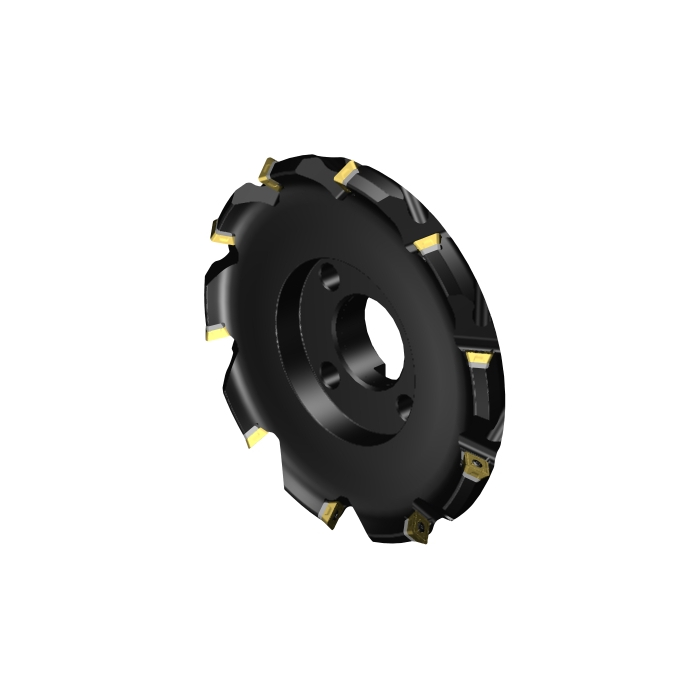

Sandvik Coromant RA245-254R63-12M CoroMill™ 245 face milling cutter Previous Sandvik Coromant RA245-254R63-12M CoroMill™ 245 face milling cutter

Sandvik Coromant RA245-254R63-18M CoroMill™ 245 face milling cutter

R 29 648,15 inc. vat
Out of stock
SKU
5738507
CoroMill® 245 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 245 face milling cutter
More Information
DCON - Connection Diameter 63.5mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63mm
TQ - Torque 5Nm
RPMX - Rotational Speed Maximum 34001/min
WT - Weight Of Item 12.202kg
OAL - Overall Length 63mm
OHX - Maximum Overhang 63mm
DBC - Diameter Bolt Circle 101.6mm
KAPR - Tool Cutting Edge Angle 45deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle 6.6deg
LAMS - Inclination Angle 18deg
AN - Clearance Angle Major 20deg
IC - Inscribed Circle Diameter 18mm
Insert Thickness 6.1mm
APMX - Depth Of Cut Maximum 9.99998mm
DC - Cutting Diameter 254mm
DCF - Cutting Diameter Face Contact 254mm
GAMF - Radial Rake Angle -8.41517966deg
GAMP - Axial Rake Angle 17.30536138deg
DCX - Maximum Cutting Diameter 272.8011mm
AZ - Maximum Plunge Depth 0mm
ORDCODE RA245-254R63-18M
ADINTMS - Adaptive Interface Machine Direction M_FDA1C4_S2500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-05-04 11:45:00.000
STDLET - Standard Letter C
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MB18T6_1
Hand R
MIID - Master Insert Identification R245-18T6..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 18
CICT - Cutting Item Count 10
ZEFP - Peripheral Effective Cutting Edge Count 10
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
